TR-D2254WDZIR7 v3 5-50

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12,500 s

IR range:

up to 70 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

5 - 50 (motorzoom)

Net Weight (kg):

0.635 / 0.830

Sensitivity(Lux):

0.002Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

13.6W

Dimensions (mm):

234.33 x 77.5 x 73.4

Power consumption, Watt:

DC: 9.3W PoE: 13.6W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H44°-8°±5°, V32°-6°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

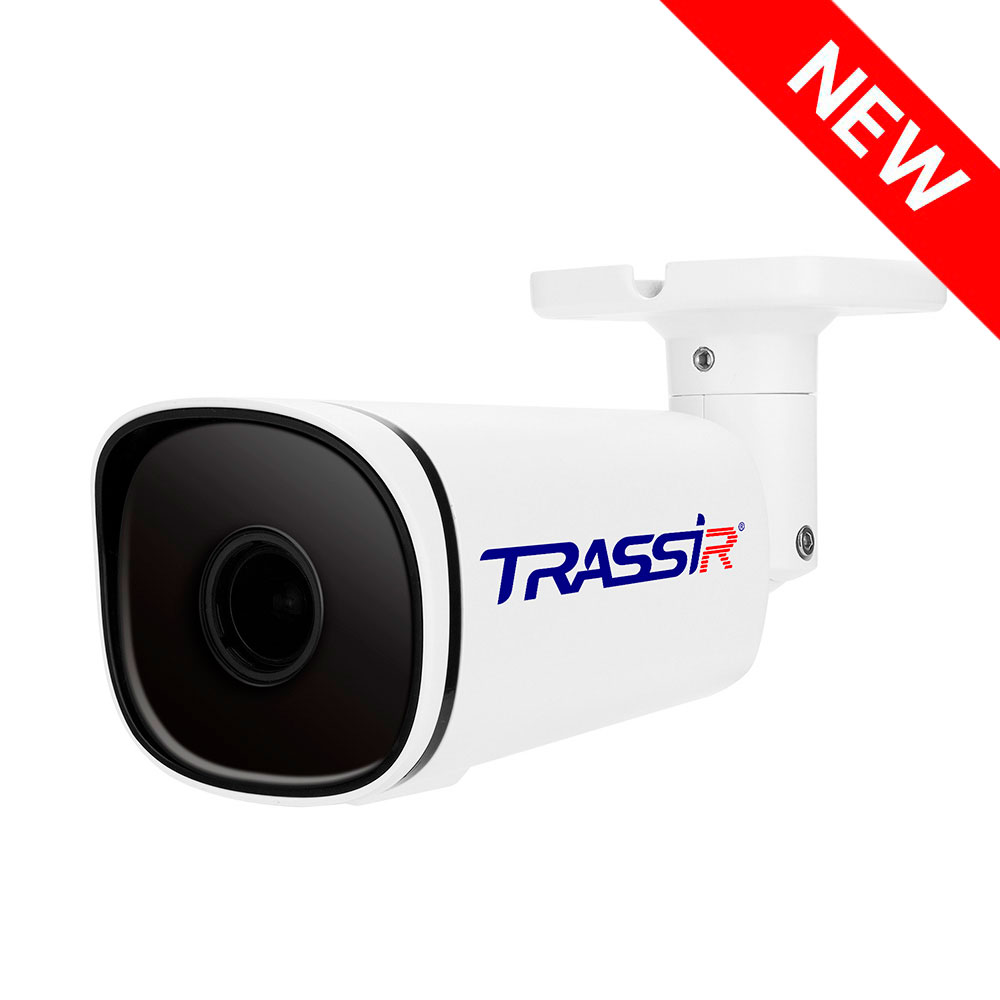

TRASSIR TR-D2254WDZIR7 v3 (5–50 mm)

TRASSIR TR-D2254WDZIR7 v3 5–50 is an outdoor bullet IP camera from the PRO series, featuring a 1/2.8" CMOS 5 MP sensor with a resolution of 2592 × 1920. A motorized 5–50 mm varifocal lens enables precise scene adjustment, while IR illumination with a range of up to 70 meters ensures effective monitoring in low-light and nighttime conditions.

The camera supports Day/Night mode with a mechanical IR cut filter and offers a sensitivity of 0.002 lux (F1.6). Real WDR with a dynamic range of 120 dB and 3D DNR noise reduction are provided for scenes with high contrast and low illumination.

It supports H.265+ / H.265 / H.264 video compression and includes built-in video analytics such as people detection, line crossing, area intrusion detection, visitor counting, and vehicle and face detection.

Network connection is via an RJ45 interface, and power can be supplied via PoE (802.3af) or 12 V DC. The camera features 1/1 alarm inputs/outputs and a microSD card slot supporting cards of up to 512 GB for local recording.

The metal housing is rated IP67 for dust and water protection and IK08 for impact resistance. An operating temperature range of −40 °C to +60 °C and a built-in 4000 V TVS surge suppressor ensure reliable outdoor operation. The product is covered by a 5-year warranty.

Documentation

TR-D2254WDZIR7 v3 5-50.pdf
