TR-D8151IR3 v7 3.6

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Sphere

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.38 / 0.48

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

7.6W

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

DC: 4.3W PoE: 7.6W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H84°, V60°

Video compression:

Н.265+ / Н.265 / H.264

Overview

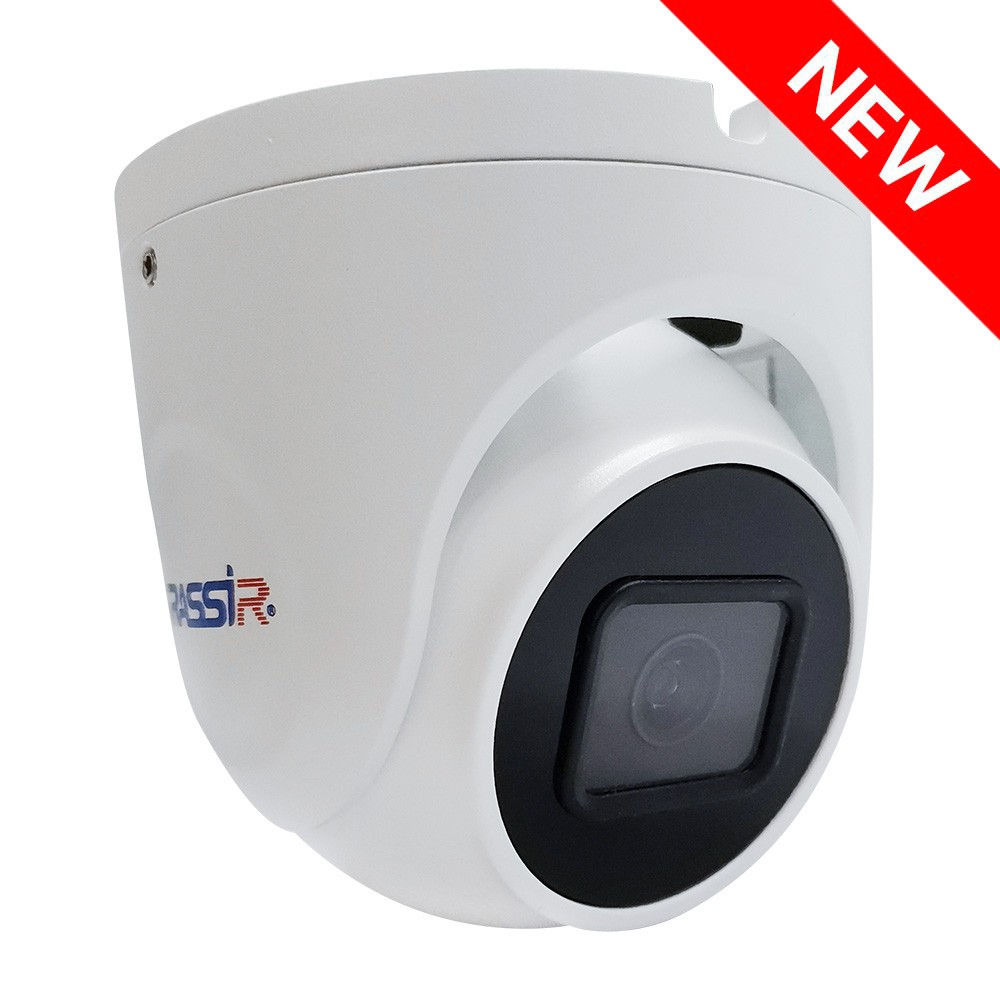

TRASSIR TR-D8151IR3 v7 (3.6 mm)

The TRASSIR TR-D8151IR3 v7 3.6 is a 5 MP (2560×1920) IP camera engineered for outdoor use in areas with direct public access, providing stable performance in all weather and lighting conditions. The camera features a durable metal housing with IK10 impact resistance and IP66 protection against dust and moisture. It operates in extreme temperatures from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Integrated IR illumination supports night surveillance up to 35 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB – enhances image clarity in high-contrast lighting conditions
3D DNR – spatial noise reduction for cleaner, more detailed footage
Corridor mode – vertically oriented video to minimize blind spots
1/2.8" CMOS sensor with 0.003 lx low-light sensitivity
Fixed lens (3.6 mm), horizontal viewing angle: 84°, vertical viewing angle: 60°, aperture: F/1.6
Mechanical IR-cut filter – blocks infrared light in well-lit conditions for accurate color reproduction
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supports up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 7.6 W
Dimensions: Ø93.0 × 92.2 mm
Weight: 380 g
