Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/10 000 sec

IR range:

up to 100 meters

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

PTZ speed dome

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

4.3-86

Net Weight (kg):

2.1 / 2.4

Sensitivity(Lux):

0.002Лк (F1.78)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

23W

Dimensions (mm):

Ø129 x 211

Power consumption, Watt:

PoE: 23W DC: 21W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H52.7°- 4.2°, V30.3°- 2.4°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

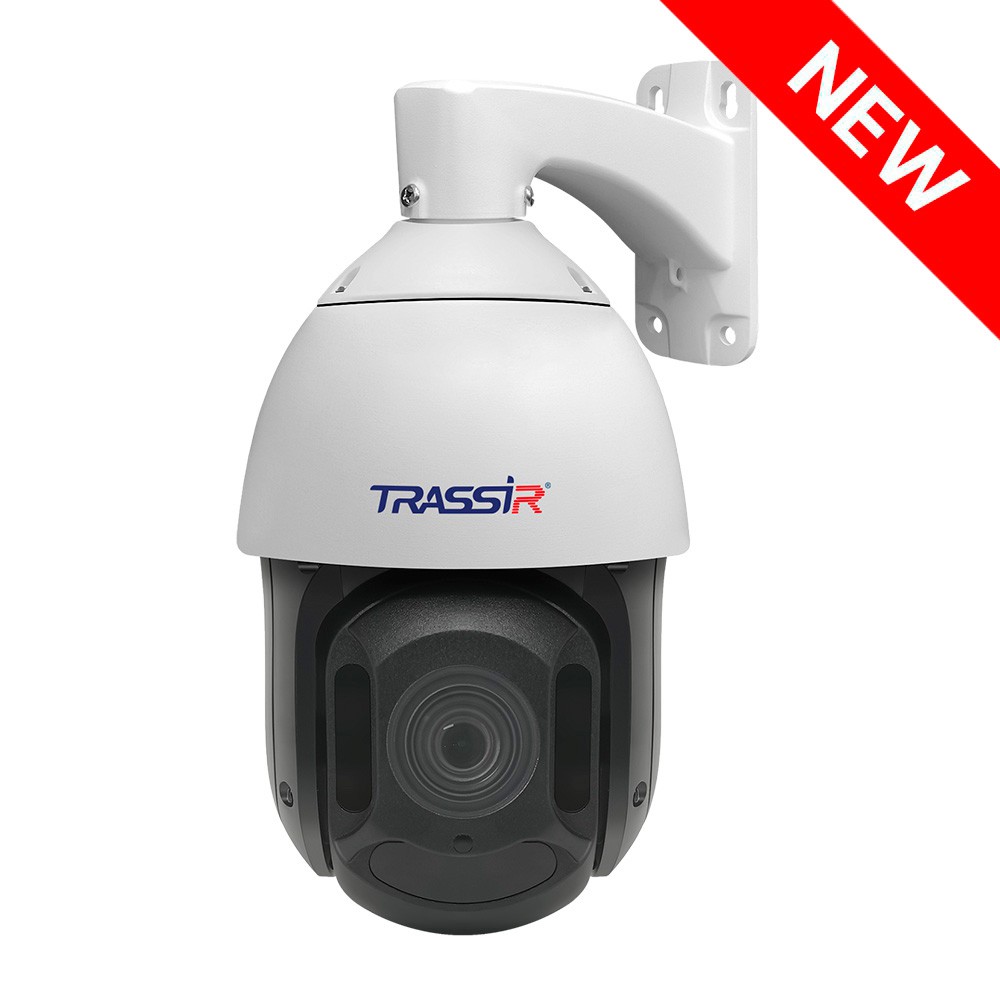

TRASSIR TR-D6124IR10 v3 (4.3-86 mm)

The 2 MP (1920×1080) rotating IP camera TRASSIR TR-D6124IR10 v3 4.3-86 is designed for outdoor use in all seasons. The housing meets the IP66 standard for dust and moisture protection, IK10 for mechanical impact resistance, and operates within a temperature range of –40 °C to +60 °C.

Functionality:

Pan range: 0° to 360°, tilt range: –16° to 90°
Pan speed: 0.1°/s to 200.0°/s, preset speed: 0.1°/s to 200.0°/s
Tilt speed: 0.1°/s to 180.0°/s, preset speed: 0.1°/s to 180.0°/s
3D DNR – spatial noise reduction
BLC – software backlight correction
People detection, line crossing, and area control
IR illumination with a range of 100 m
Compression: H.265+, H.265, H.264
Day/night mode with a mechanical IR filter that blocks infrared rays in sufficient light
ROI – four fixed regions of interest
MicroSD card slot supporting up to 256 GB

Specifications:

The TR-D6124IR10 v3 4.3-86 features a 1/2.8" CMOS sensor with a sensitivity of 0.002 lux. It has a motorized lens with a focal length range of 4.3 to 86 mm and an aperture range of F/1.78 to F/2.86. The horizontal viewing angle is 52.7° to 4.2°, and the vertical viewing angle is 30.3° to 2.4°. Autofocus is supported.

Interfaces: Network port, audio input/output, alarm input/output
Power supply: DC 12 V, PoE
Power consumption: 23 W
Dimensions: Ø129 × 211 mm
Weight: 2.1 kg
