Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.635 / 0.830

Sensitivity(Lux):

0.005Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

10.9W

Dimensions (mm):

234.3 x 77.5 x 75.3

Power consumption, Watt:

DC: 9.8W PoE: 10.9W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H102°- 34°±5°, V54°- 20°±5°

Video compression:

Н.265+ / Н.265 / H.264

Overview

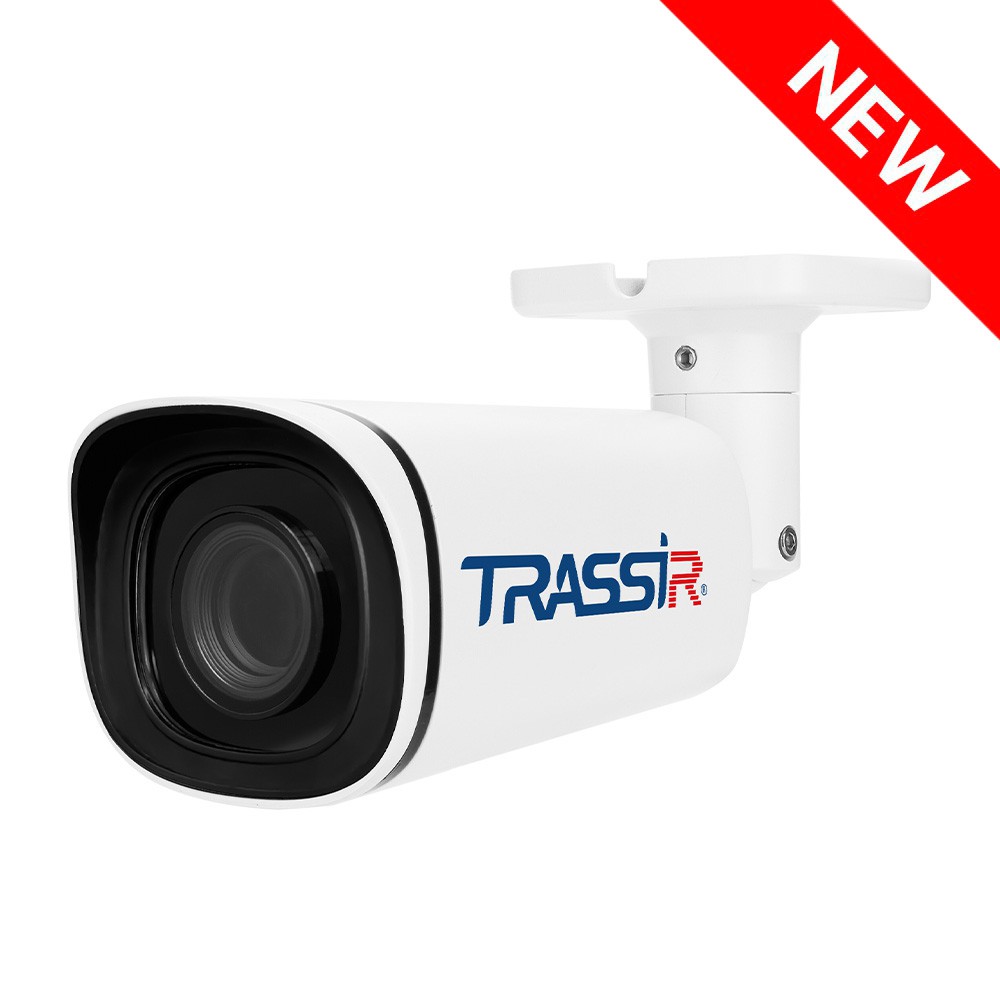

TRASSIR TR-D2123ZIR6 v7 (2.7–13.5 mm)

The TRASSIR TR-D2123ZIR6 v7 2.7–13.5 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, ensuring reliable performance throughout the year, day or night. Its robust metal housing is rated IP67 for protection against dust and moisture and IK08 for resistance to mechanical impacts. The camera operates in extreme temperatures ranging from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 60 meters.

Parameters:

Blackface IR illumination technology
Detection capabilities: people, vehicles, line crossing, area entry and exit
Real WDR 120 dB – enhances image quality under high-contrast lighting
3D DNR – spatial noise reduction for improved low-light performance
Corridor mode – optimized for vertically oriented scenes
1/2.8" CMOS sensor with 0.005 lx minimum illumination
Vari-focal lens (2.7–13.5 mm) with horizontal viewing angle from 102° to 34°, vertical angle from 54° to 20°, and F/1.6 aperture
Mechanical IR cut filter – blocks infrared light under sufficient ambient lighting
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 9.8 W
Dimensions: Ø234.3 × 77.5 × 75.3 mm
Weight: 635 g
