TR-D8181IR3 v3 2.8
Technical Specifications
Audio:
ArrayWDR:
RWDR 120 dBFrame rate:
30Electronic shutter speed:
1/3 ~ 1/10 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
8MPForm factor:
SphereWi-Fi:
-Maximum video output resolution:
3840x2160Image sensor:
1/2.7" CMOSBitrate (Mb/sec):
10Power supply:
12V DCLens (mm):
2.8Net Weight (kg):
0.350Sensitivity(Lux):
0,005Local storage:
microSD up to 128 GBIngress protection:
IP67IR:
YesCase material:
MetalLightning protection:
TVS 4000VDimensions (mm):
Ø103.5 x 82.4Power consumption, Watt:
7.5Working temperature, C°:
-40°C ... +60°CDay/Night Mode:
Mechanic IR-filterClass PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264Overview

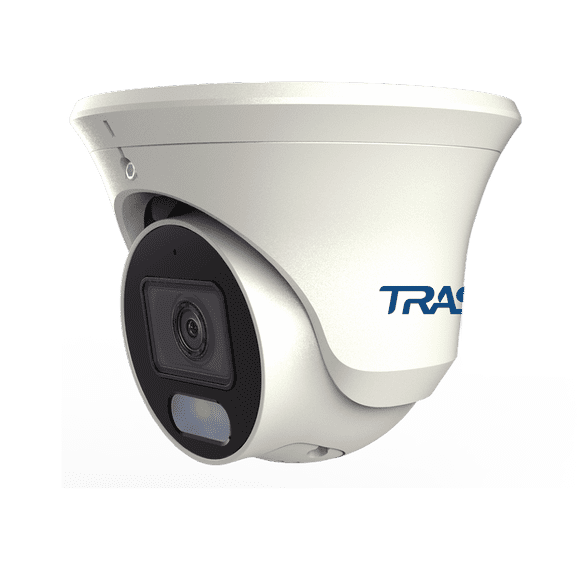

8 MP (3840×2160) TRASSIR TR-D8181IR3 v3 2.8 IP camera works stably outdoors in the temperature range of –40 °C… +60 °C, comes in a metal housing protected from moisture and dust according to IP67 standard, suitable for night video surveillance - equipped with IR illumination with a range of 30 m.
Functionality
Basics
TR-D8181IR3 v3 2.8 is built on a 1/2.7-inch CMOS sensor with a sensitivity of 0.005 lux. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 10 Mbps. Equipped with a fixed lens with a focal length of 2.8 mm, a horizontal angle of view of 105°, a vertical angle of 56°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 8 watts. Size - Ø103.5×82.4 mm. Weight - 350 g.
Functionality
- Motion detection, virtual line crossing, area intrusion, area exit, abandoned and missing objects, loitering, crowd, parking, sound events, defocus, scene change.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- Lightning protection (TVS 4000 V).
- Built-in microphone.
- Strobe mode for visual signaling.
- Compression H.265+, H.265, H.264+, H.264.
- Broadcast speed and resolution of the main stream - 15 fps 3840 × 2160, 25 fps 2592 × 1944, 2560 × 1440, 2304 × 1728, 2048 × 1536, 1920 × 1080, 1280 × 960, additional - 15 fps 1280 × 720, 704 × 576 , 352×288.
Basics
TR-D8181IR3 v3 2.8 is built on a 1/2.7-inch CMOS sensor with a sensitivity of 0.005 lux. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 10 Mbps. Equipped with a fixed lens with a focal length of 2.8 mm, a horizontal angle of view of 105°, a vertical angle of 56°, an aperture of F / 1.8, an RJ-45 network port, a slot for microSD with a capacity of up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 8 watts. Size - Ø103.5×82.4 mm. Weight - 350 g.
Documentation
TR-D8181IR3v3_passport_en.pdf
