Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.460 / 0.565

Sensitivity(Lux):

0.005Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

5.6W

Dimensions (mm):

184.7 x 66.5 x 63.05

Power consumption, Watt:

DC: 3.8W PoE: 5.6W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H88°±5°, V48°±5°

Video compression:

Н.265+ / Н.265 / H.264

Overview

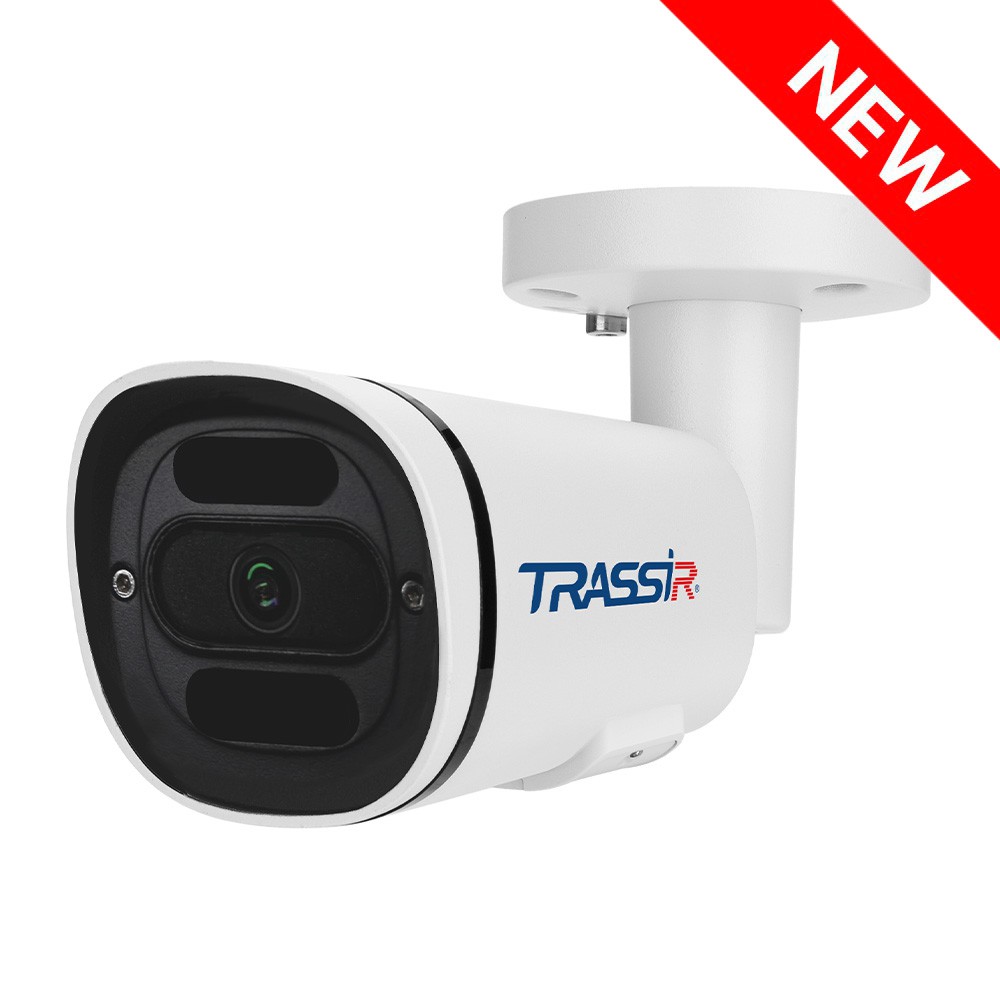

TRASSIR TR-D2121IR3 v7 (3.6 mm)

The TRASSIR TR-D2121IR3 v7 3.6 is a 2 MP (2560×1920) IP camera designed for outdoor use in high-access areas, functioning reliably in any season, day or night. Its durable metal housing is rated IP67 for protection against dust and moisture. The camera operates in extreme temperatures ranging from -40 °C to +60 °C and includes TVS 4000 V lightning protection. Integrated IR illumination provides visibility up to 35 meters in low-light conditions.

Parameters:

Blackface IR illumination technology
Detection capabilities: people, vehicles, line crossing, area entry and exit
Real WDR 120 dB – improves image quality in high-contrast lighting conditions
3D DNR – spatial noise reduction for enhanced clarity
Corridor mode – optimized for vertically oriented scenes
1/2.8" CMOS sensor with 0.005 lx minimum illumination
Fixed 3.6 mm lens with 88° horizontal and 48° vertical field of view, F/1.6 aperture
Mechanical IR cut filter – blocks infrared light in adequate lighting conditions
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 3.8 W
Dimensions: Ø184.7 × 66.5 × 63.05 mm
Weight: 460 g
