Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Sphere

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.40 / 0.49

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

12.8W

Dimensions (mm):

Ø120 x 110.8

Power consumption, Watt:

DC: 10.1W PoE: 12.8W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H84°, V60°

Video compression:

Н.265+ / Н.265 / H.264

Overview

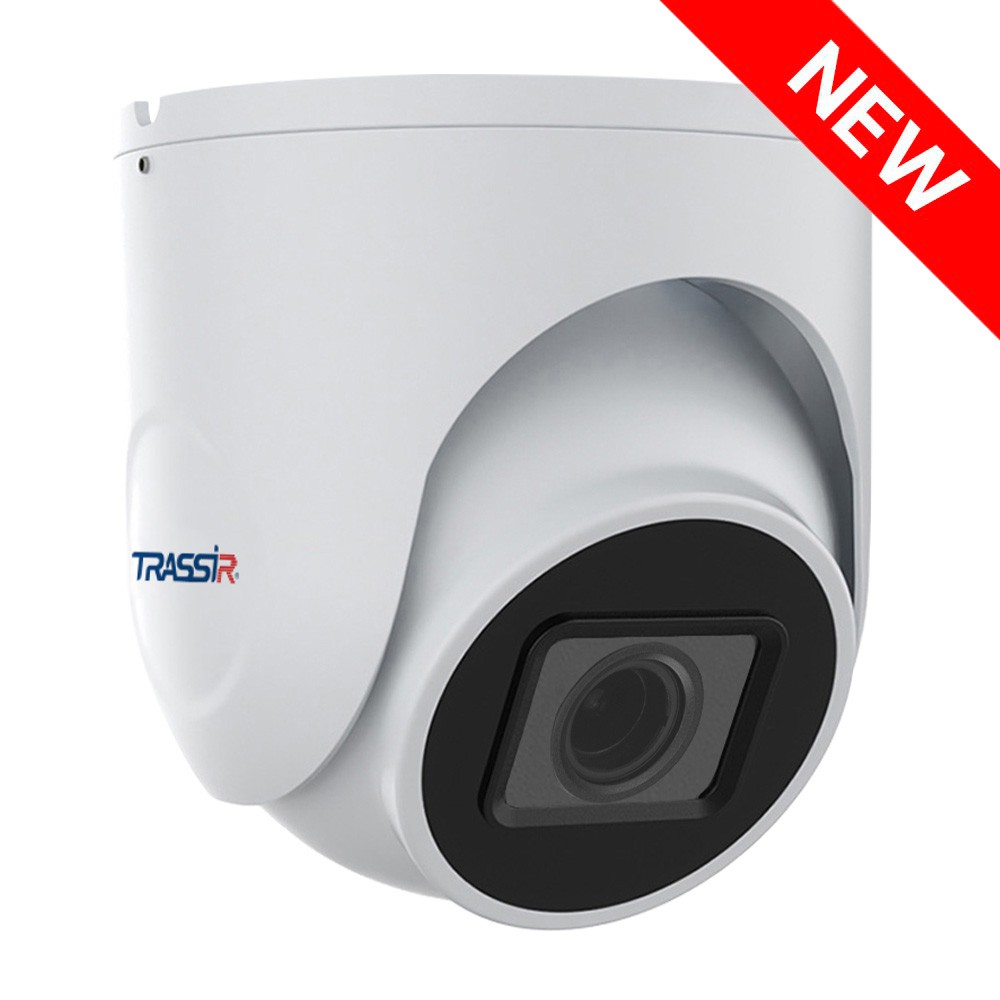

TRASSIR TR-D8153ZIR4 v7 (2.7–13.5 mm)

The TRASSIR TR-D8153ZIR4 v7 2.7–13.5 is a 5 MP (2560×1920) IP camera built for outdoor use in direct access locations, ensuring reliable operation throughout the year and day. It features a robust metal housing with IK10 impact protection and IP66-rated resistance to dust and moisture. The camera works in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection. Its integrated IR illumination supports night vision up to 40 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB – enhances image quality in multi-contrast lighting
3D DNR – spatial noise reduction for clearer images
Corridor mode – vertical video orientation to minimize blind spots
1/2.8" CMOS sensor with 0.003 lx sensitivity
Motorized varifocal lens (2.7–13.5 mm), horizontal viewing angle: 91°–29°, vertical viewing angle: 69°–22°, aperture: F/1.6
Mechanical IR-cut filter – blocks infrared light in sufficient lighting conditions
Video compression: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 12.8 W
Dimensions: Ø120.0 × 110.8 mm
Weight: 400 g
