TR-D2224WDZIR7 v3 5-50
Audio:
ArrayWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 70 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
BulletMaximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
5 - 50 (motorzoom)Net Weight (kg):
0.635 / 0.830Sensitivity(Lux):
0.002Lux (F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK08IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
11.5WDimensions (mm):
234.33 x 77.5 x 73.4Power consumption, Watt:
DC: 9.6W PoE: 11.5WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H47°-10°±5°, V27°-5°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264

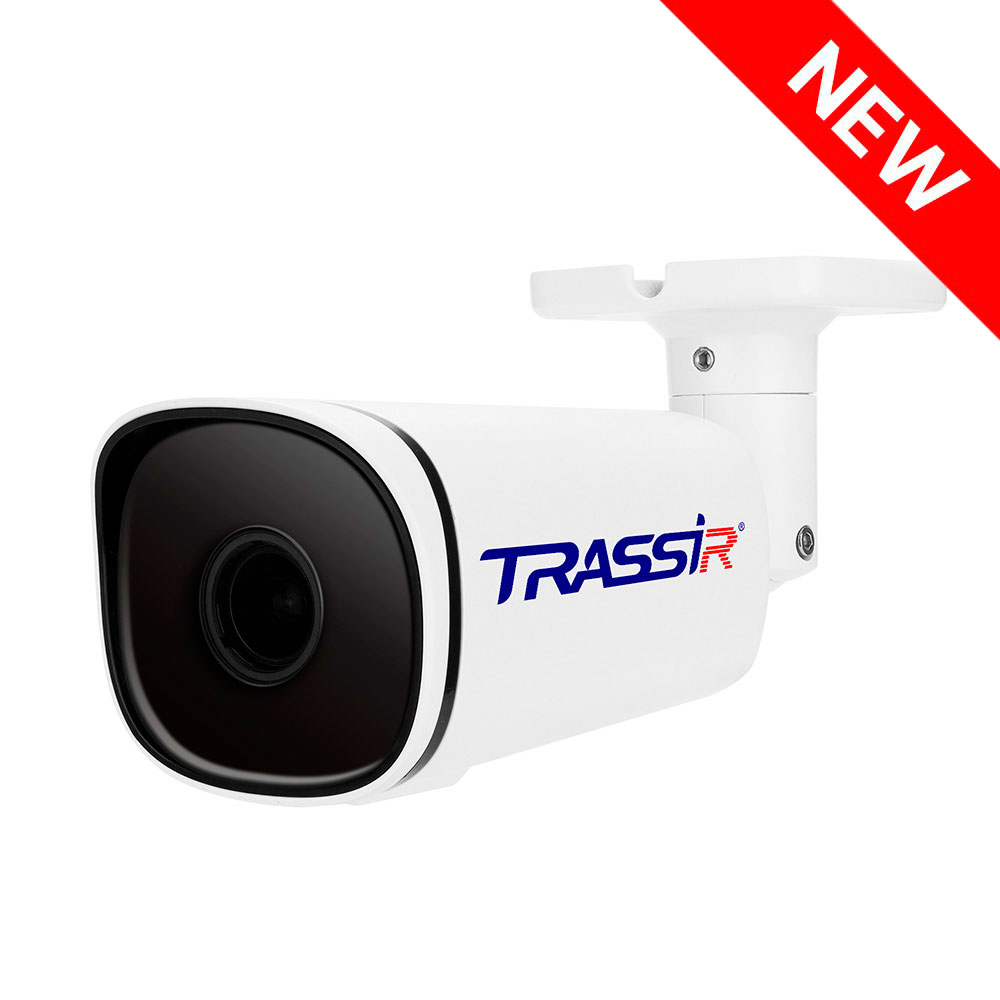

TRASSIR TR-D2224WDZIR7 v3 5–50 is a bullet-style IP camera designed for outdoor video surveillance. It features a 1/2.8" 2 MP CMOS sensor and delivers video at a resolution of 1920 × 1080.
For poor lighting conditions, it provides Real WDR with a 120 dB dynamic range, 3D DNR noise reduction, and Day/Night mode with a mechanical IR cut filter. The minimum sensitivity is 0.002 lux (F1.6). A motorized 5–50 mm varifocal lens allows flexible scene adjustment, and IR illumination with a range of up to 70 meters ensures reliable monitoring in low light.
The camera supports H.265+ / H.265 / H.264 video compression with bitrates of up to 8 Mbps. It is equipped with a built-in microphone, 1/1 alarm inputs/outputs, and supports local storage on a microSD card of up to 512 GB. Power can be supplied via PoE (802.3af) or 12 V DC.
The metal housing is rated IP67 for dust and water protection and IK08 for impact resistance. The camera operates in temperatures from −40 °C to +60 °C and comes with a 5-year warranty.
TR-D2224WDZIR7 v3 5-50.pdf
