Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 15 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Dome

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.31 / 0.40

Sensitivity(Lux):

0.005Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

3.6W

Dimensions (mm):

Ø102.20 x 56.38

Power consumption, Watt:

DC: 3.0W PoE: 3.6W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H88°±5°, V48°±5°

Video compression:

Н.265+ / Н.265 / H.264

Overview

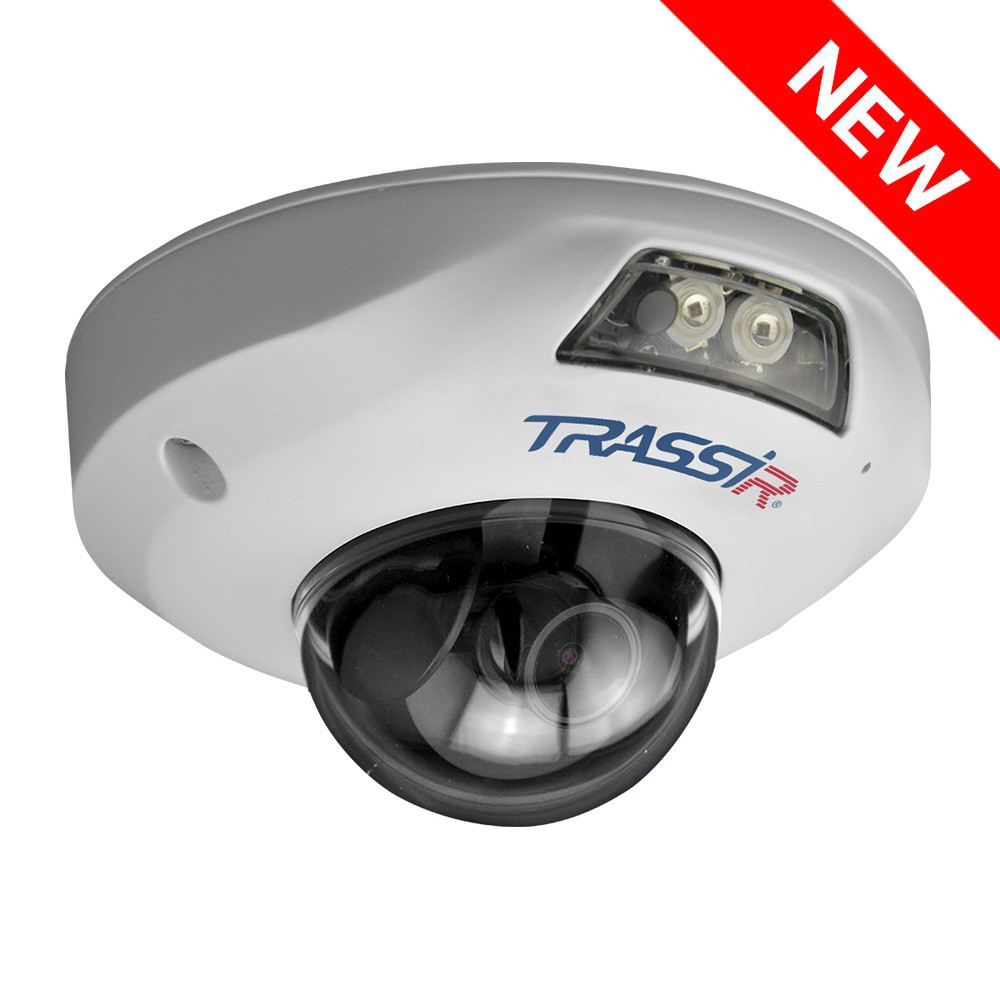

TRASSIR TR-D4121IR1 v7 (3.6 mm)

The TRASSIR TR-D4121IR1 v7 3.6 is a 2 MP (1920×1080) IP camera designed for outdoor use in areas with direct public access, delivering stable operation year-round, day or night. The metal housing is rated IP66 for protection against dust and moisture, and IK10 for resistance to mechanical impact. The camera functions in a wide temperature range from –40 °C to +60 °C, features TVS 4000 V lightning protection, and includes integrated IR illumination with a range of up to 15 meters.

Parameters:

Detection capabilities: people, vehicles, line crossing, area entry and exit
Real WDR 120 dB – enhances image clarity in high-contrast lighting conditions
3D DNR – spatial noise reduction for improved image quality in low-light environments
Corridor mode – ideal for vertically oriented scenes
1/2.8" CMOS sensor with 0.005 lx minimum illumination
Fixed 3.6 mm lens with 88° horizontal and 48° vertical viewing angles, F/1.6 aperture
Mechanical IR cut filter – blocks infrared light when ambient lighting is sufficient
Video compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB (hot-swappable)
Interfaces: network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 3.0 W
Dimensions: Ø102.20 × 56.38 mm
Weight: 310 g
