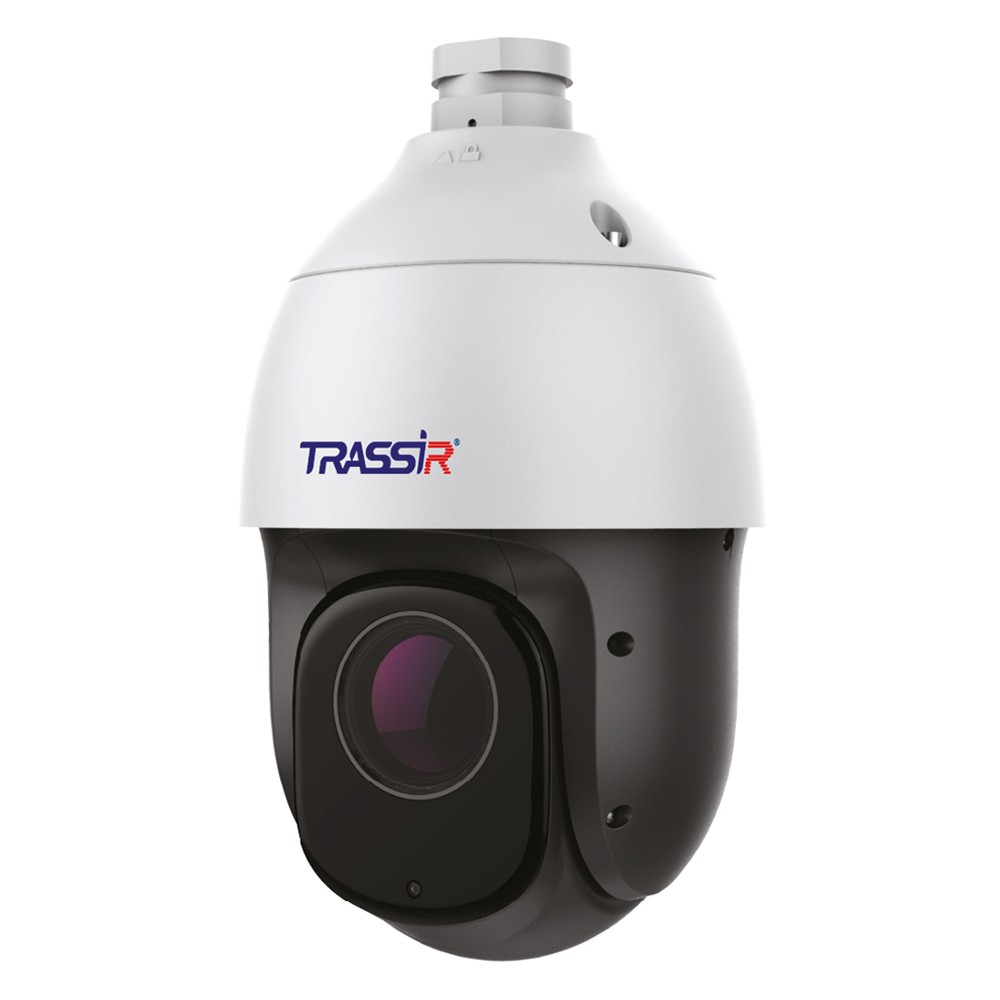

TR-D6224IR15 v3 4.8–120

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

WDR (140 dB)

Electronic shutter speed:

1/1 s. ~ 1/100 000 s.

IR range:

up to 150 m

Digital noise Reduction:

2DNR / 3DNR

Resolution:

2MP

Form factor:

PTZ speed dome

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Archive, Tb:

up to 512GB

Power supply:

12V DC

Lens (mm):

4.8 - 120 (motorzoom)

Net Weight (kg):

Local storage:

microSD/SDHC/SDXC up to 256 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Aluminum

Dimensions (mm):

Ø161 x 276

Power consumption, Watt:

PoE: 22W (IR on), DC: 22W (IR on)

Working temperature, C°:

-30°C ... +70°C (IR on)

Day/Night Mode:

Mechanical ICR

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

Key features

• Wide dynamic range (Real WDR 140dB);
• IR range up to 150 meters;
• Built-in video archive (Edge Storage) – local recording on MicroSD card* up to 512GB*
• IVS: Human detection; Line crossing; Intrusion detection / Abandoned / Missing objects detection; Motor vehicle/Non-motor vehicle detection;
• Two-way audio channel (1 in / 1 out);
• Alarm IN/OUT (1/1);
• TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, PPPoE, NTP, UPnP, SMTP, QoS, IPV4, MULTICAST, RTMP, ONVIF protocols;
• IP66 weather-tight case;
• Power supply 12V DC or PoE.
___________________________
* MicroSD card is not included into camera package

Documentation

TR-D6224IR15v3_passport_en.pdf
