Technical Specifications

Audio:

Array

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/3 ~ 1/10 000 s

IR range:

40m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

8MP

Form factor:

Bullet

Wi-Fi:

Maximum video output resolution:

3840x2160

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.364

Sensitivity(Lux):

0,005

Local storage:

microSD up to 128 GB

Ingress protection:

IP67

Case material:

Metal

Dimensions (mm):

176.2x68x68

Power consumption, Watt:

6.5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+, Н.265, H.264+, H.264

Overview

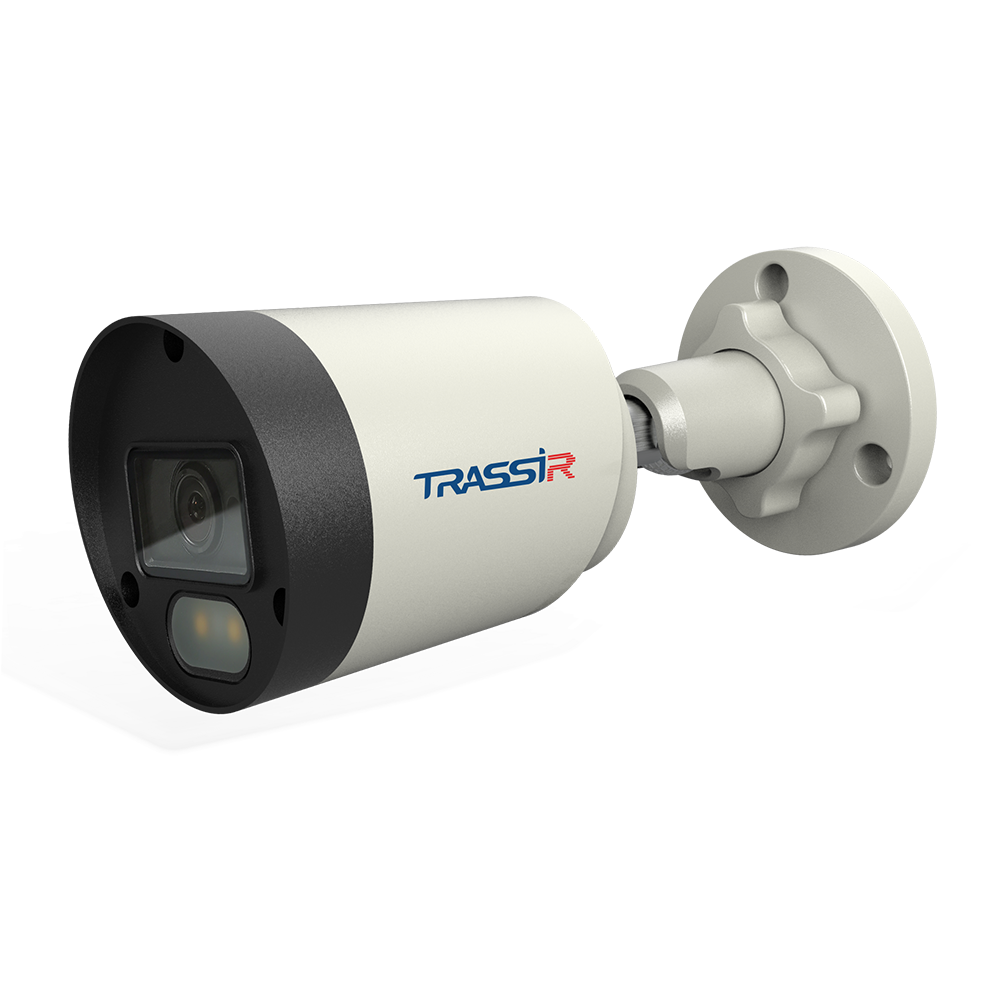

8 MP (3840×2160) IP-camera TRASSIR TR-D2281WDIR4 2.8 is designed taking into account the conditions of year-round outdoor operation under the influence of precipitation: the case is protected from dust and moisture according to the IP67 standard, operating temperatures from -40 °C ... +60 °C, lightning protection — 6000V.

Functionality

Detection of movement, faces, virtual line crossing (with counting), left objects.
Detection of intrusion into the zone, exit from the area (with filtering of people and vehicles).
Built-in microphone.
IR illumination with a range of 40 m.
Additional LED-backlight operating in strobe mode.
Day/Night mode with ICR: When there is enough light, the filter blocks IR rays, and in the dark it moves away from the sensor to increase its sensitivity and illumination efficiency.
WDR 120 dB - minimizing the effect of different contrast lighting on picture quality.
3D DNR - noise reduction.
BLC - software correction of the overexposed background.
Defog - Contrast enhancement to reduce the effect caused by fog or smoke.
Compression H.264, H.265, H.264+, H.265+.
Main stream resolution - 3840x2160, 3200x1800, 3072x1728, 2560x1440, 1920x1080; additional - 1280x720, 704x576, 352x288.
The frame rate of the main stream is 15 fps (WDR on 8 MP), 20 fps (WDR off 8 MP, 6 MP), 25 fps (5 MP and below), additional - 20 fps. Bitrate - 13 Mbps.

Basic

The TR-D2281WDIR4 2.8 is based on a high sensitivity (0.005 lux) 1/2.8 inch Sony Starvis CMOS sensor. Comes with a fixed lens. Parameters: focal length - 2.8 mm, aperture - F / 1.8, horizontal viewing angle - 106 °, vertical - 58 °. Interfaces: RJ-45, audio output, audio input, alarm output, alarm input, microSD card slot up to 128 GB. Power supply - DC 12 V, PoE. Power - 6.8W max. Size - 176.2 × 68 × 68 mm, weight - 364 g.

Documentation

TR-D2281WDIR4_passport_en.pdf
