TR-D4251WDIR2 v2 2.8
Technical Specifications
Audio:
ArrayWDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sIR range:
20mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
DomeWi-Fi:
-Maximum video output resolution:
2592x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
2.8Net Weight (kg):
0.310Sensitivity(Lux):
0,003Local storage:
microSD up to 128 GBIngress protection:
IP66IR:
YesCase material:
MetalLightning protection:
TVS 4000VDimensions (mm):
Ø102.2 x 56.4Power consumption, Watt:
3.9Working temperature, C°:
-40°C ... +60°CDay/Night Mode:
Mechanic IR-filterVideo compression:
Н.265+ / Н.265 / H.264+ / H.264Overview

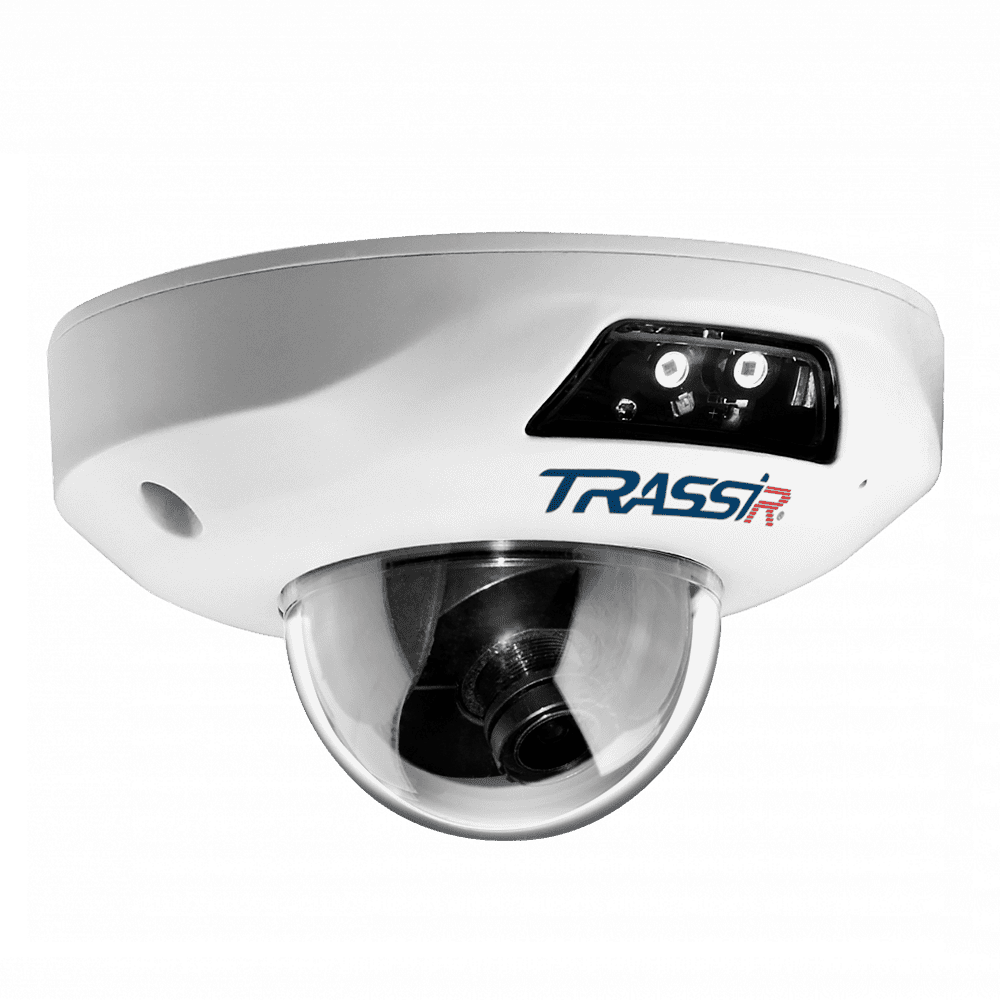

5 MP (2592×1920) IP-camera TRASSIR TR-D4251WDIR2 v2 2.8 is adapted for year-round outdoor operation in places of direct access: housing protection from moisture and dust - IP66, mechanical impact - IK10, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.
Functionality
Built-in microphone.
Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase contrast to eliminate blur caused by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 20 m.
Compression H.265+, H.265, H.264+, H.264.
Bitrate - 8 Mbps, frame rate - 25 fps.
Basics
TR-D4251WDIR2 v2 2.8 is based on a 1/2.8" CMOS sensor with 0.003 lux sensitivity. It is equipped with a fixed focal length lens of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, an aperture of F/1.8, an RJ-network port. 45, audio in, audio out, microSD slot up to 128 MB Supports day/night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it mechanically moves away from the sensor to increase its sensitivity. - 12 V DC, PoE Maximum power - 4.6 W Size - Ø102.2 × 56.4 mm Weight - 310 g.
Functionality
Built-in microphone.
Motion detection, faces (optional), cars.
People counting.
Detection of virtual line crossing, area intrusion, area exit, loitering.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase contrast to eliminate blur caused by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 20 m.
Compression H.265+, H.265, H.264+, H.264.
Bitrate - 8 Mbps, frame rate - 25 fps.
Basics
TR-D4251WDIR2 v2 2.8 is based on a 1/2.8" CMOS sensor with 0.003 lux sensitivity. It is equipped with a fixed focal length lens of 2.8 mm, a horizontal angle of view of 91°, a vertical angle of 66°, an aperture of F/1.8, an RJ-network port. 45, audio in, audio out, microSD slot up to 128 MB Supports day/night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it mechanically moves away from the sensor to increase its sensitivity. - 12 V DC, PoE Maximum power - 4.6 W Size - Ø102.2 × 56.4 mm Weight - 310 g.
Documentation
TR-D4251WDIR2v2_passport_en.pdf
