Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12 500 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.45 / 0.58

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

5.1W

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

DC: 3.0W PoE: 5.1W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H79°±5°, V59°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

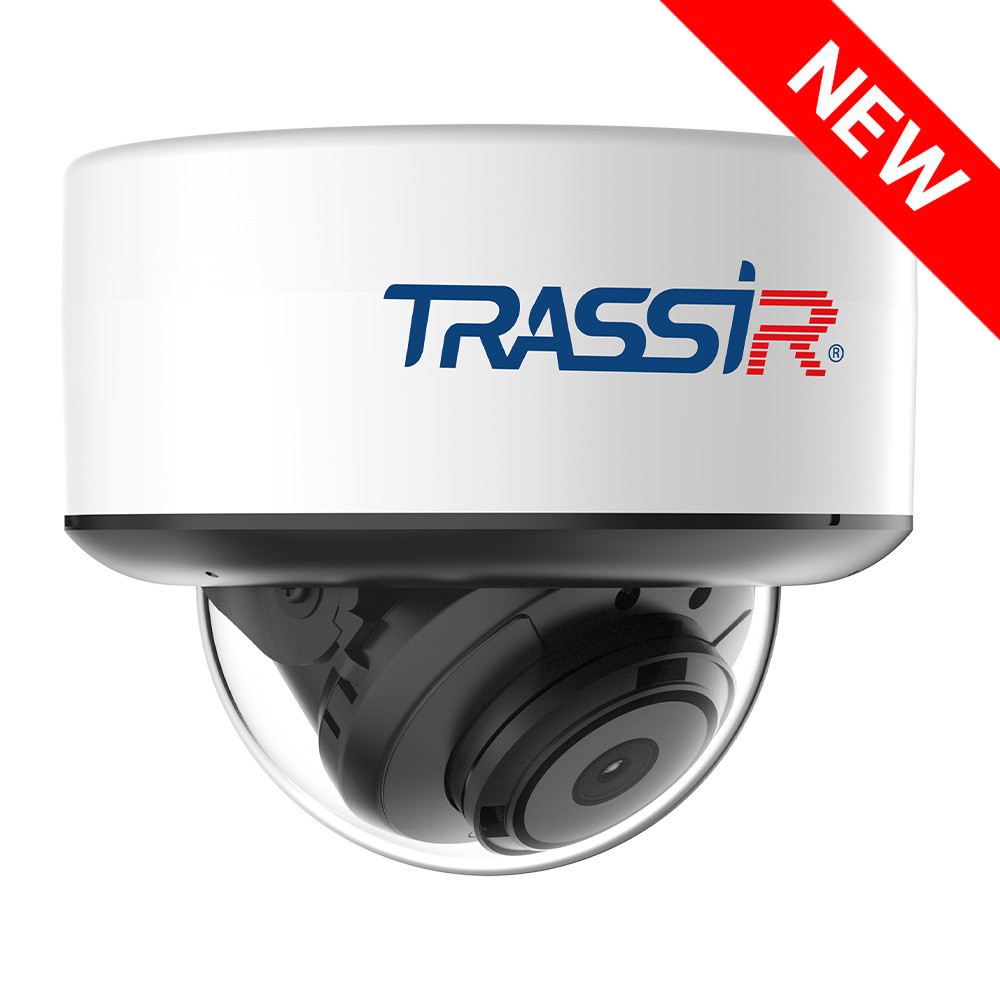

TRASSIR TR-D3251WDIR3 v3 (3.6 mm)

TRASSIR TR-D3251WDIR3 v3 3.6 5 MP (2592×1920) IP Camera is designed for outdoor use in all seasons. Its housing provides protection against dust and moisture (IP66), resists mechanical impacts (IK10), operates in extreme temperatures (-40 °C to +60 °C), includes lightning protection (TVS 4000), and features integrated IR illumination with a range of up to 30 m.

Functionality:

Face detection, motion detection, people detection, line crossing, area intrusion, loitering, vehicle detection, people counting
WDR 120 dB: Reduces the impact of high-contrast lighting on image quality
3D DNR: Spatial noise reduction
Corridor mode: Captures vertically oriented scenes
Defog: Enhances contrast to minimize the effects of fog and smoke
BLC: Backlight compensation
IR illumination: Up to 30 m
Video compression: H.265+, H.265, H.264
Main stream: 25–30 fps at 2592×1920 resolution

Main specifications:

1/2.8-inch CMOS sensor with 0.003 lux sensitivity
Day/night mode with ICR: blocks IR rays in sufficient light for optimized color reproduction; mechanically shifts in darkness to increase sensitivity
Bitrate: 8 Mbps
Fixed lens: 3.6 mm focal length, horizontal FOV 79° ±5°, vertical FOV 59° ±5°, aperture F/1.6
RJ-45 network port, built-in microphone
MicroSD slot supporting up to 512 GB
Power: DC 12 V, PoE
Maximum power consumption: 5.1 W
Dimensions: Ø116.10 × 96.51 mm
Weight: 450 g
