TR-D2S1-noPOE v3 3.6

Book A Demo How To Buy

Technical Specifications

WDR:

RWDR 105 dB

IR range:

Up to 20

Resolution:

2MP

Form factor:

Sphere

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

12V DC

Lens (mm):

3.6

Net Weight (kg):

0.205 / 0.3

Sensitivity(Lux):

0.005Lux (F1.8)

Dimensions (mm):

Ø109.98x98.50

Power consumption, Watt:

2.3W

Working temperature, C°:

-10°C … +50°C

Day/Night Mode:

Mechanical ICR

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

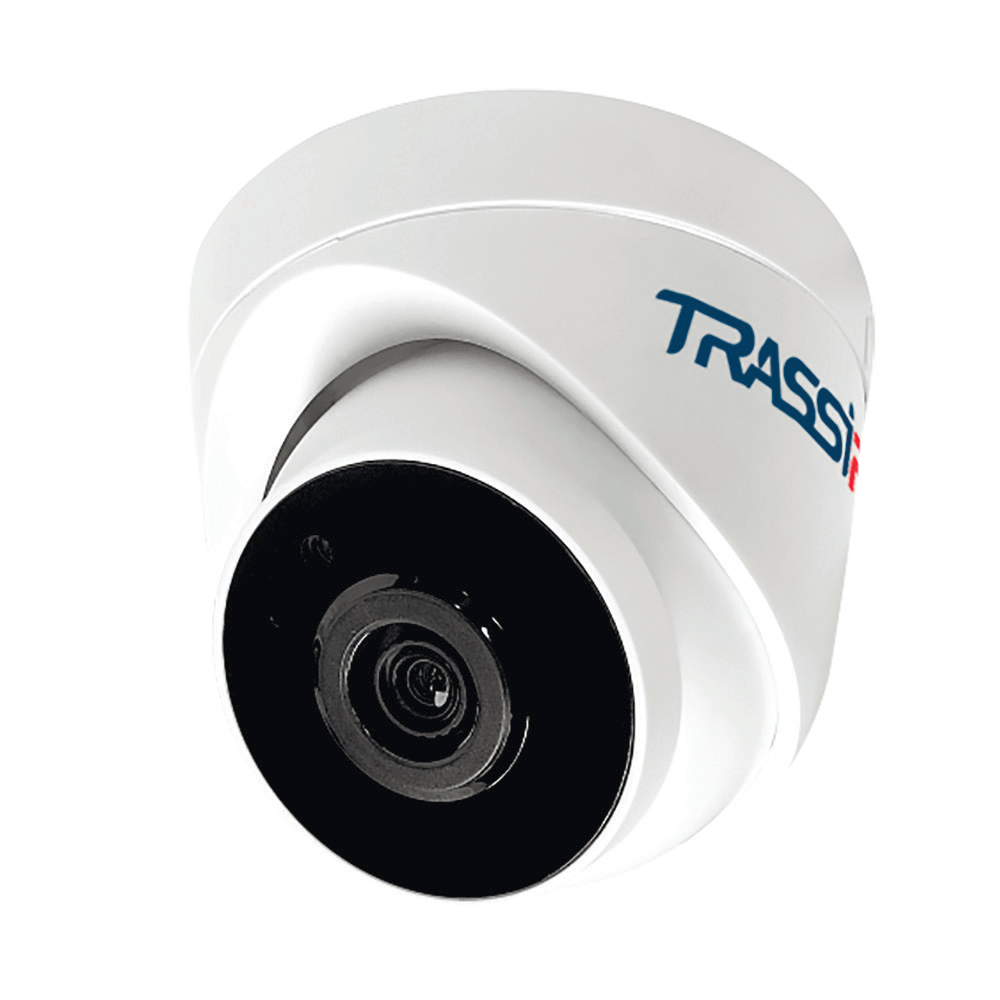

The 2 MP (1920×1080) IP Camera TRASSIR TR-D2S1-noPoE v3 3.6 is built on a 1/2.9" CMOS sensor with a sensitivity of 0.005 lux. It comes with a fixed focal length lens of 3.6 mm, providing a horizontal viewing angle of 81° and a vertical viewing angle of 44°, with an aperture of F/1.8. Suitable for night surveillance, it features integrated IR illumination with a range of 20 meters.

Functionality:

· Detection: motion, people, line crossing, area entry, and exit.

· DWDR: image processing in low light conditions.

· BLC: backlight compensation.

· ROI: region of interest.

· Day/Night Mode: with a mechanical filter allowing infrared radiation transmission in sufficient lighting.

· Compression: H.265+, H.265, H.264.

· Power: DC 12 V.

· Maximum Power Consumption: 2.3 W.

· Dimensions: Ø110.0×98.5 mm.

· Weight: 205 g.

· Operating Temperature: –10 °C to +50 °C.
