TR-D3151IR3 v7 2.8

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.45 / 0.58

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

6.8W

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

DC: 4.1W PoE: 6.8W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H98°, V71°

Video compression:

Н.265+ / Н.265 / H.264

Overview

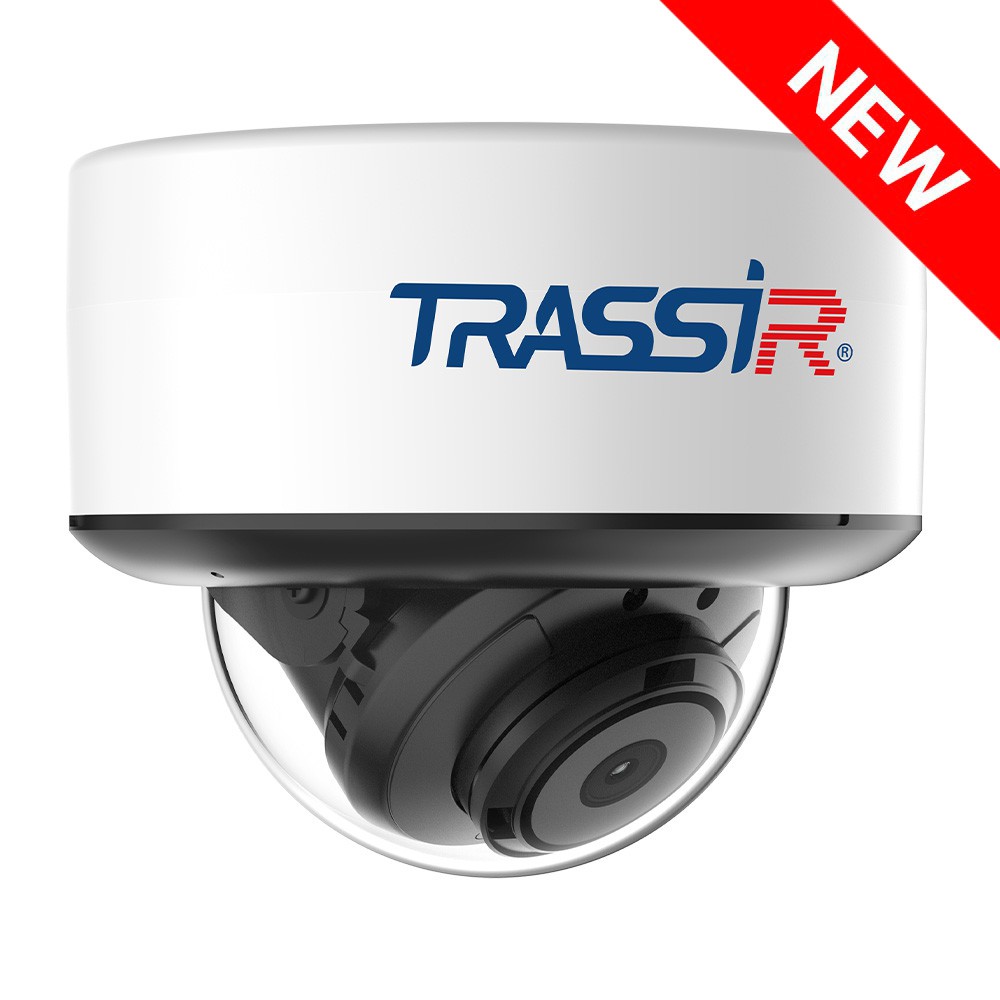

TRASSIR TR-D3151IR3 v7 (2.8 mm)

The TRASSIR TR-D3151IR3 v7 2.8 is a 5 MP (2560×1920) IP camera adapted for year-round outdoor use in direct-access locations. It features a durable metal housing, rated IK10 for protection against mechanical impacts and IP66 for resistance to moisture and dust. With an operating temperature range of –40 °C to +60 °C and 4000 V TVS lightning protection, the camera ensures stable performance in harsh environments.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB to enhance image quality under high-contrast lighting
3D DNR for spatial noise reduction
Corridor mode for vertically oriented image capture
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed 2.8 mm focal length lens, 98° horizontal viewing angle, 71° vertical viewing angle, F/1.6 aperture
Mechanical IR-cut filter for optimal image quality in varying light conditions
Night vision: IR illumination range up to 35 meters
Local storage: SD card slot supporting up to 256 GB; hot-swappable
Two-way audio: built-in microphone, audio input and output
Video compression: H.265+, H.265, H.264
Power supply: DC 12 V or PoE
Maximum power consumption: 6.8 W
Dimensions: Ø116.10 × 96.51 mm
Weight: 450 g
