TR-D2363WDZDL6 2.7-13.5

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

WDR (130 dB)

Frame rate:

Electronic shutter speed:

1 ~ 1/100,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

6MP

Form factor:

Bullet

Maximum video output resolution:

3200x1800

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 16Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

1.520 / 2.326

Sensitivity(Lux):

0.001Lux (F1.2)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

15W

Dimensions (mm):

334x112x112

Power consumption, Watt:

DC: 13W PoE: 15W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H112.3˚- 41.2˚±5˚, V58.1˚- 23.1˚±5˚

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264 / MJPEG

Overview

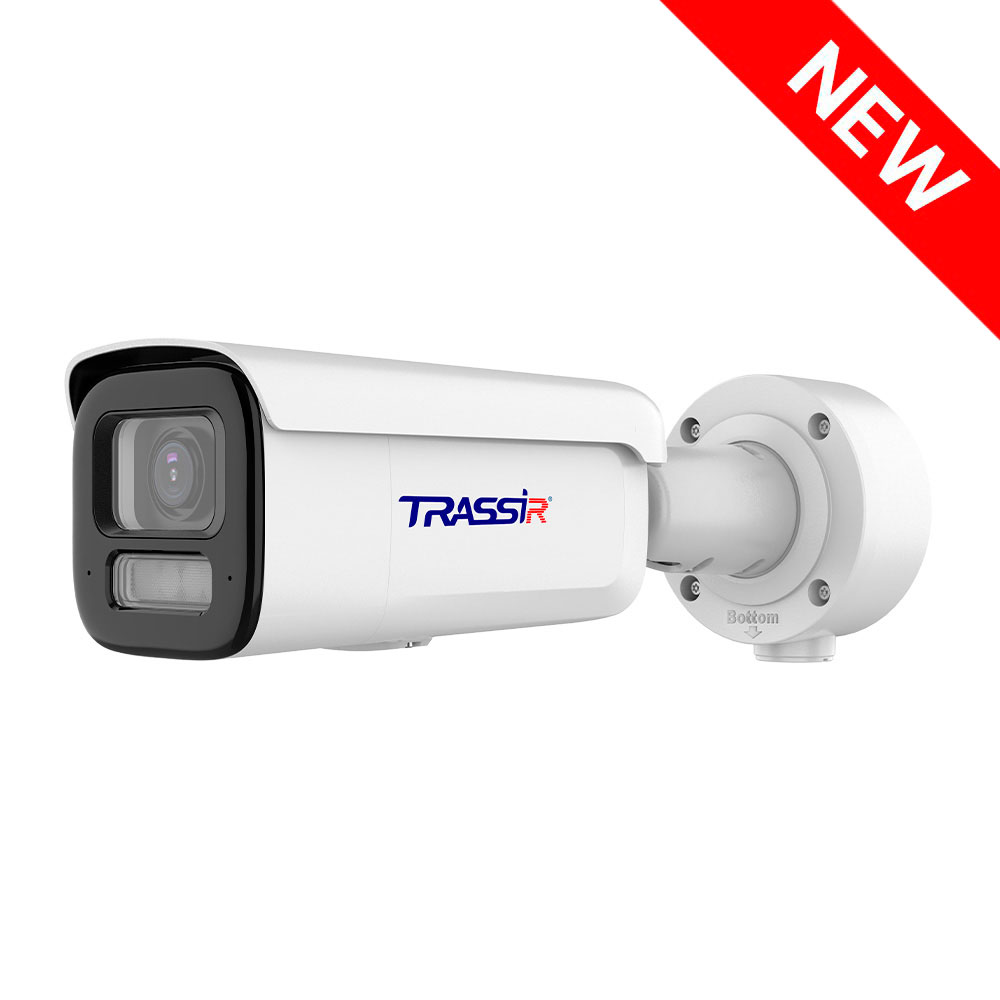

TRASSIR TR-D2363WDZDL6 (2.7–13.5 mm)

TRASSIR TR-D2363WDZDL6 2.7–13.5 is a bullet-style outdoor IP camera with dual intelligent illumination for 24/7 video surveillance. It features a 1/1.8" CMOS sensor and delivers images at a maximum resolution of 6 MP (3200 × 1800). A motorized 2.7–13.5 mm zoom lens allows precise scene adjustment.

For poor lighting conditions, it provides Real WDR with a 130 dB dynamic range and 3D DNR noise reduction. IR illumination with a range of up to 60 meters and warm-white LED illumination with a range of up to 60 meters ensure reliable nighttime surveillance.

The camera supports H.265+ / H.265 / H.264+ / H.264 / MJPEG compression with bitrates of up to 16 Mbps, simplifying video storage and transmission. It supports Edge Storage for local recording to a microSD card with a capacity of up to 512 GB.

The camera supports two-way audio (built-in microphone, audio input, and audio output), 2/2 alarm inputs/outputs, and built-in hardware analytics including people detection, line crossing detection, area intrusion monitoring, people counting, vehicle detection, and face detection.

Power can be supplied via PoE (802.3af) or 12 V DC. Maximum power consumption is 13 W via DC and 15 W via PoE. The metal housing is rated IP67 for dust and water protection and IK10 for impact resistance and includes built-in 4000 V TVS surge protection. The camera operates in temperatures from −40 °C to +60 °C.

Documentation

TR-D2363WDZDL6 2.7-13.5.pdf
