TR-D8121DL2 v7 3.6
Audio:
ArrayWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/3 ~ 1/100,000 sIR range:
up to 30 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
2MPForm factor:
SphereMaximum video output resolution:
1920x1080Image sensor:
1/2.9" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
3.6Net Weight (kg):
0.82 / 0.98Sensitivity(Lux):
0.005Lux(F1.6)Local storage:
MicroSD up to 512GBIngress protection:
IP67IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
5.3WDimensions (mm):
Ø103.5 x 82.4Power consumption, Watt:
DC: 4.7W PoE: 5.3WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICR / FTCField of view:
H85.5˚, V44˚Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264

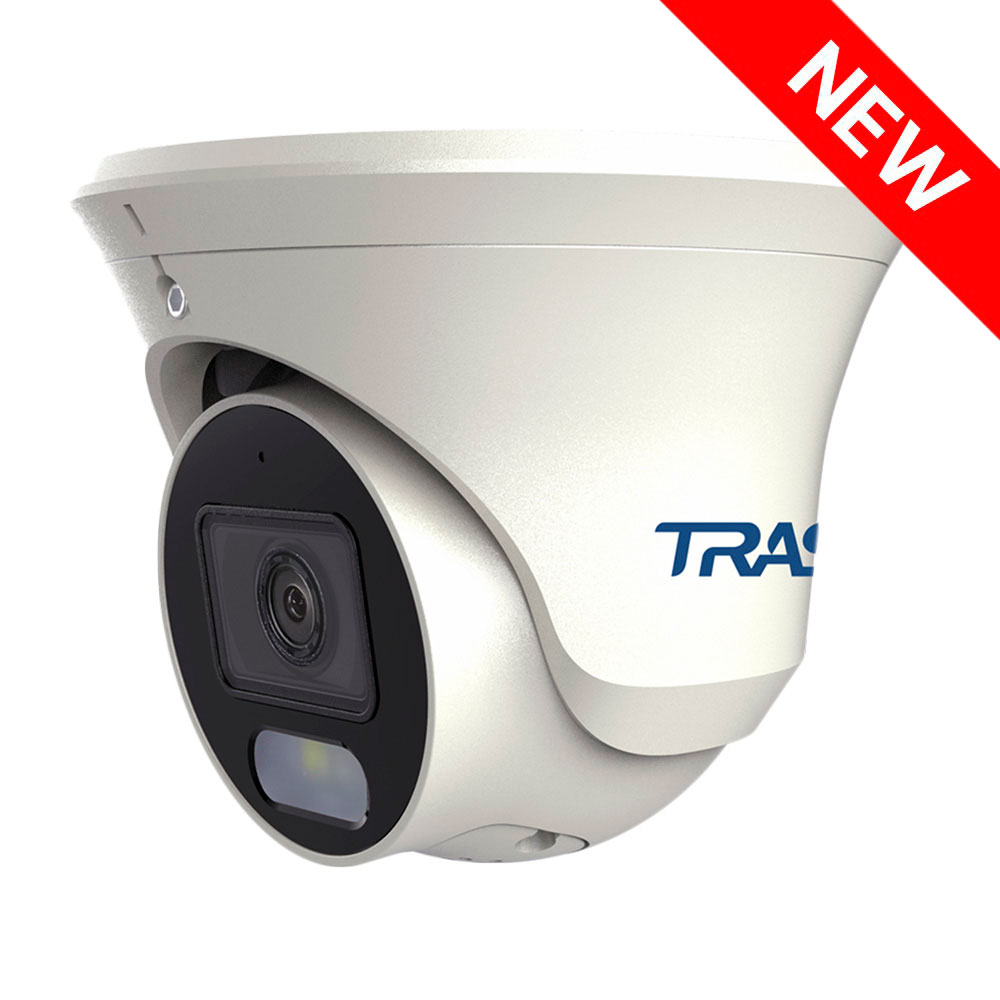

TRASSIR TR-D8121DL2 v7 3.6 is an outdoor camera featuring dual intelligent illumination for 24/7 video surveillance. With a 1/2.9" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions.
The camera offers IR and warm white LED illumination, each with a range of up to 30 meters, enabling detailed video capture in complete darkness. It supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.
For efficient video transmission, the camera supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is available via a microSD card of up to 512 GB. Power can be supplied through 802.3af PoE or 12V DC.
Designed for durability, the IP67-rated enclosure operates in temperatures from -40°C to +60°C and includes 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.
TR-D8121DL2 v7 3.6.pdf
