TR-D2123ZDL6 v7 2.8-12

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.9" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8 - 12

Net Weight (kg):

0.82 / 0.98

Sensitivity(Lux):

0.005Lux(F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

7.58W

Dimensions (mm):

Ø74.5 x 215.8

Power consumption, Watt:

DC: 6.8W PoE: 7.58W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H92.2˚ - 33.1˚, V43.5˚ - 16.5˚

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

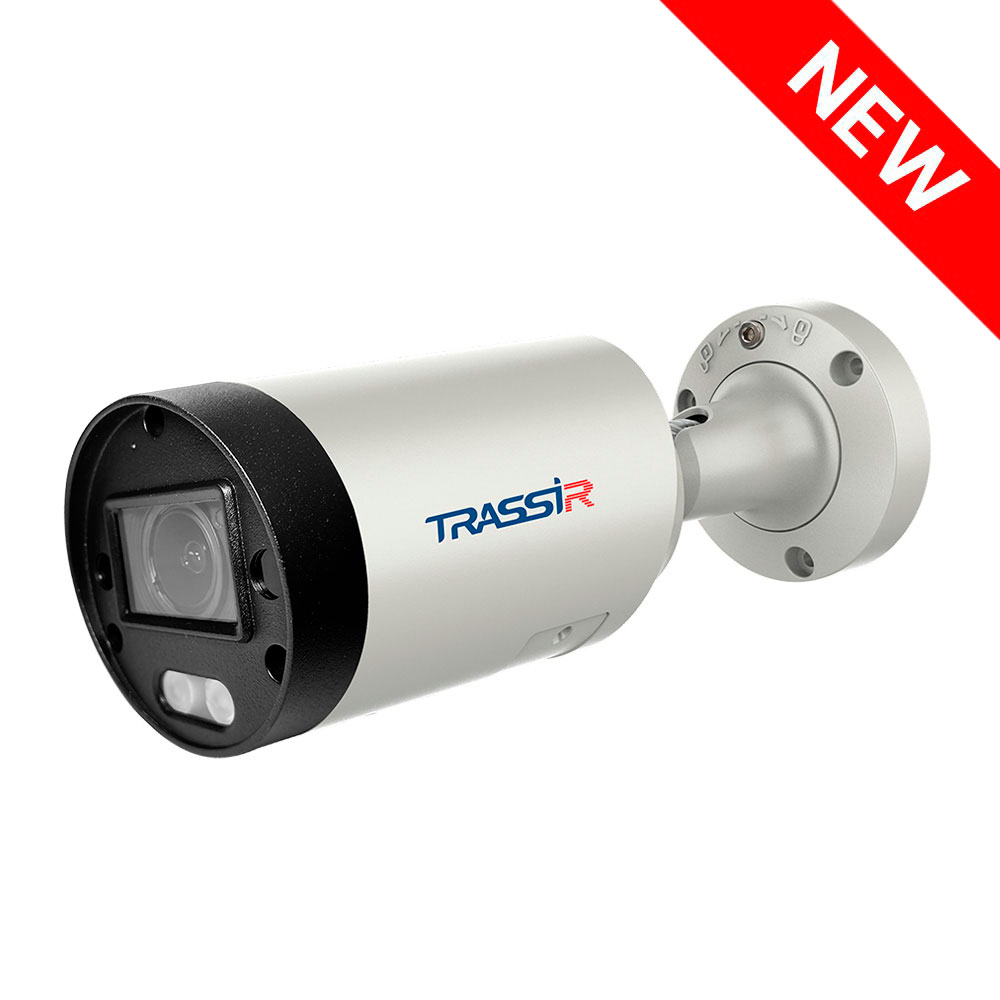

TRASSIR TR-D2123ZDL6 v7 (2.8-12 mm)

TRASSIR TR-D2123ZDL6 v7 2.8-12 is an outdoor cylindrical camera featuring dual intelligent illumination for 24/7 video monitoring. Equipped with a 1/2.9" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). The 2.8-12 mm varifocal lens provides horizontal viewing angles of 92.2°–33.1° and vertical angles of 43.5°–16.5°, allowing wide or close-up shots as needed. Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions.

The camera offers IR and warm white LED illumination, each with a range of up to 60 meters, enabling detailed video capture in low-light environments. It also supports hardware analytics, including people detection, line crossing detection, area monitoring, and vehicle detection.

For efficient video transmission, the camera supports H.265+ and H.264+ codecs with a maximum bitrate of 8 Mbps. Local recording is supported via a microSD card of up to 512 GB. Power can be supplied via 802.3af PoE or 12V DC.

Designed for durability, the IP67-rated enclosure operates in temperatures from -40°C to +60°C and includes 6000V TVS protection. The camera is compatible with multiple network protocols, including Onvif.

Documentation

TR_D2123ZDL6v7_passport_en.pdf
