TR-D8221WDDL4 v3 3.6

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

2MP

Form factor:

Sphere

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS 2MP

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.528 / 0.723

Sensitivity(Lux):

0.005Lux(F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 6000V

Power PoE:

5.2W

Dimensions (mm):

172.3 x 68 x 68

Power consumption, Watt:

DC: 4.5W PoE: 5.2W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H85.5˚, V44˚

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

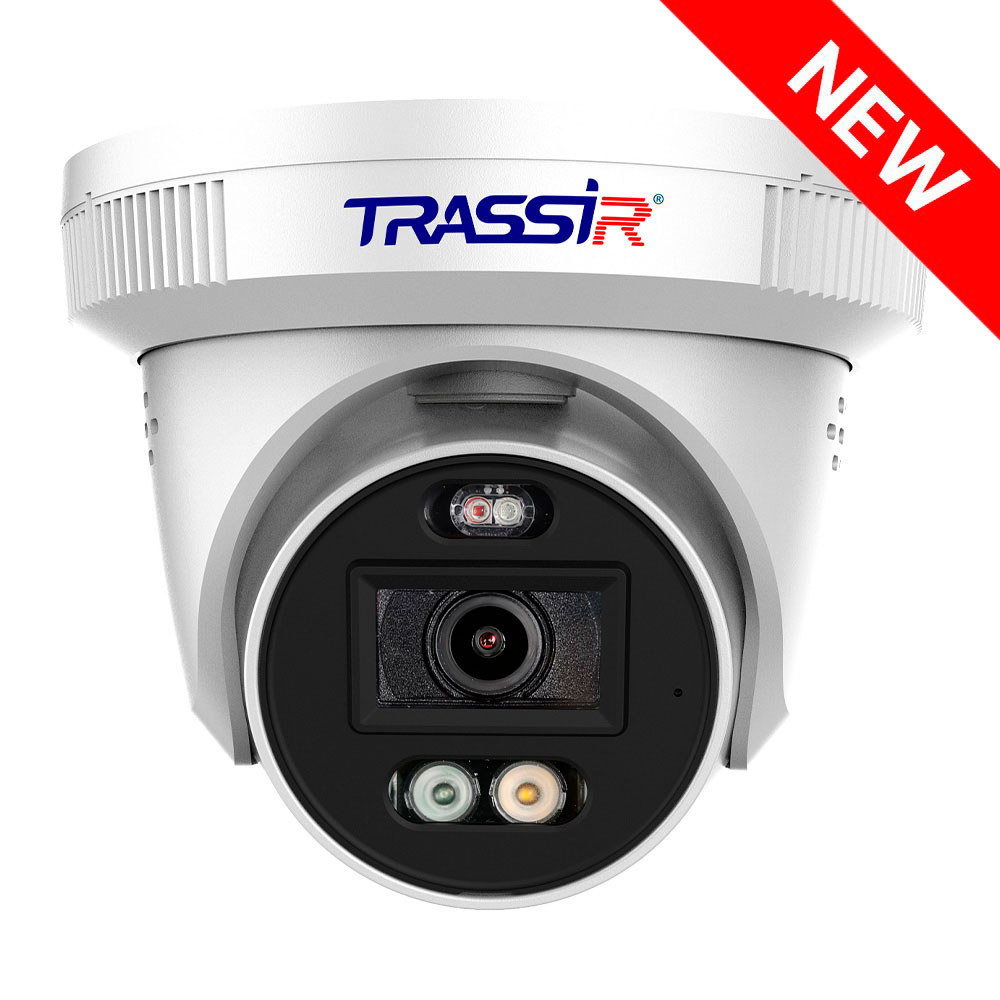

TRASSIR TR-D8221WDDL4 v3 (3.6 mm)

TRASSIR TR-D8221WDDL4 v3 3.6 is an outdoor spherical camera featuring dual intelligent illumination for 24/7 video monitoring. With a 1/2.8" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions. The camera offers IR and warm white LED illumination, each with a range of up to 40 meters, enabling detailed video capture in complete darkness.

It supports H.265+, H.265, H.264+, and H.264 compression with a maximum bitrate of 8 Mbps for efficient storage and transmission of video streams. Local recording is supported via built-in Edge Storage, with MicroSD cards up to 512 GB and hot-swappable (HotSwap) capability.

Advanced hardware analytics include people and face detection, line crossing detection, loitering detection, area monitoring, people counting, and vehicle detection. Two-way audio is also supported.

Designed for outdoor installation, the camera features an IP67-rated enclosure, 6000V TVS surge protection, and operates in temperatures from -40°C to +60°C. Power can be supplied via PoE (802.3af, Class 0) or 12V DC.
