TR-D4121IR1 v6 2.8

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

RWDR 120 dB

Resolution:

2MP

Form factor:

Dome

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.7" CMOS

Bitrate (Mb/sec):

Power supply:

DC 12 V, PoE

Lens (mm):

2.8

Net Weight (kg):

0.31

Sensitivity(Lux):

0,005

Ingress protection:

IP66

Dimensions (mm):

Ø102.2x56.4

Power consumption, Watt:

2.8

Working temperature, C°:

-40…+60

Day/Night Mode:

Mechanic IR-filter

Network interfaces:

RJ-45

Overview

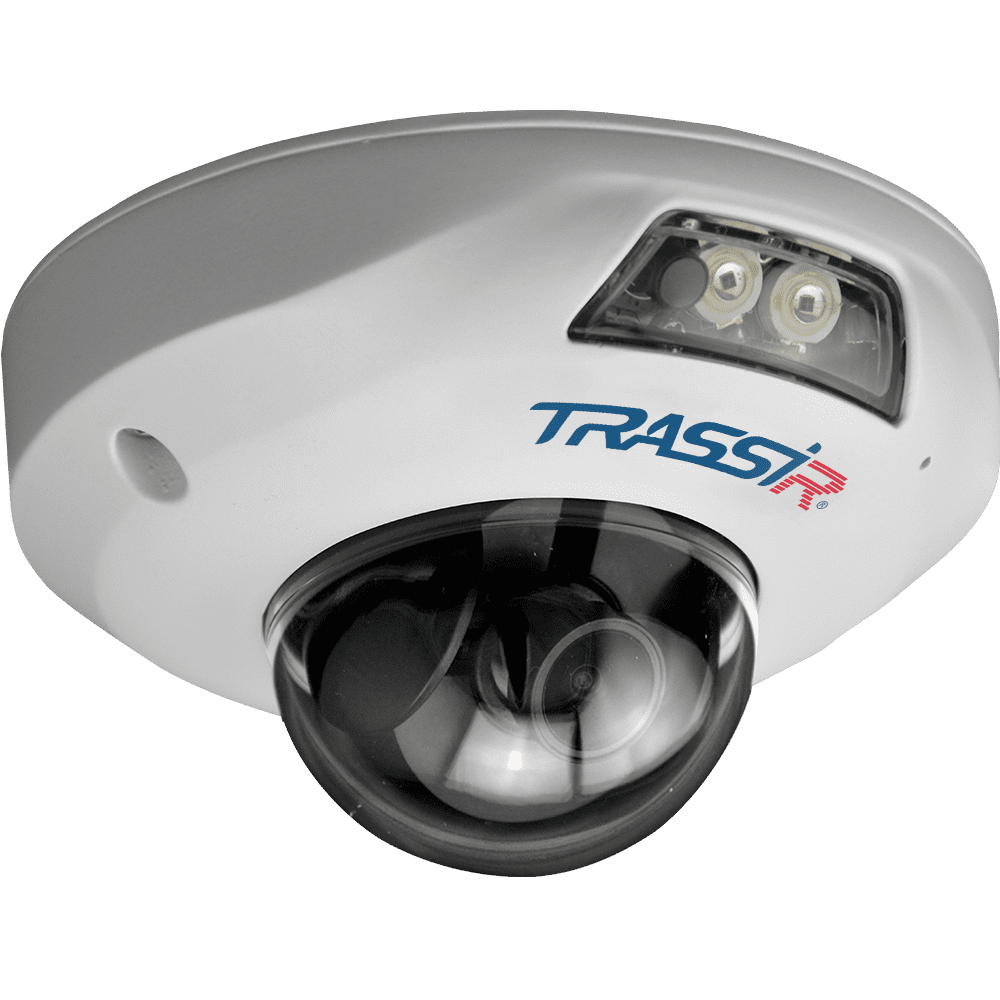

TRASSIR TR-D4121IR1 v6 (2.8 mm)

2 megapixel (1920 × 1080) IP-camera is designed for year-round use in outdoor conditions, including places of direct access: the metal case complies with the IP66 protection against moisture and dust, IK10 against mechanical impact, operating temperatures from -40 ° C ... +60 ° C, lightning protection - TVS 4000 V.

Functionality:

- Detection of people.
- Motion detection.
- Detection of crossing the virtual line.
- Area control (detection of intrusion / exit from the zone).
- Built-in microphone.
- IR illumination with a range of 15 m.
- WDR 120 dB - Eliminates the negative effect of fluctuations in the level of illumination on the image quality.
- 3D DNR - spatial noise reduction.
- Corridor Mode - Supports 9:16 vertical resolution.
- Defog - enhances contrast to minimize the effect of fog and smoke.
- BLC - Backlight Compensation.
- Compression with H.265 +, H.264 +, H.265, H.264 codecs.

Basics:

TR-D4121IR1 v6 (2.8 mm) supports day / night mode with a mechanical IR filter (refracts IR rays in sufficient light, in the dark it moves to increase sensor sensitivity and backlight operation), is equipped with a fixed focal length lens 2.8 mm, viewing angle horizontal 82 °, vertical - 44 °, aperture F / 1.8. Equipped with an RJ-45 network port, audio input, audio output, microSD slot up to 128 MB, power connector. Power Supply - 12V DC or PoE. Maximum power consumption - 2.5 W (12V), 2.8 W (PoE). Dimensions - Ø102.2 × 56.4 mm. Weight - 310 g.

Documentation

TR-D4121IR1v6_passport_en.pdf
