TR-D8221WDIR3 v2 1.9
Technical Specifications
Audio:
ArrayWDR:
RWDR 120 dBFrame rate:
30Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
2MPForm factor:
SphereWi-Fi:
-Maximum video output resolution:
1920x1080Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
1.9Net Weight (kg):
0.400Sensitivity(Lux):
0,005Local storage:
microSD up to 128 GBIngress protection:
IP66Case material:
MetalLightning protection:
TVS 4000VDimensions (mm):
Ø93 x 92.2Power consumption, Watt:
4.7Working temperature, C°:
-40°C ... +60°CDay/Night Mode:
Mechanic IR-filterVideo compression:
Н.265+ / Н.265 / H.264Overview

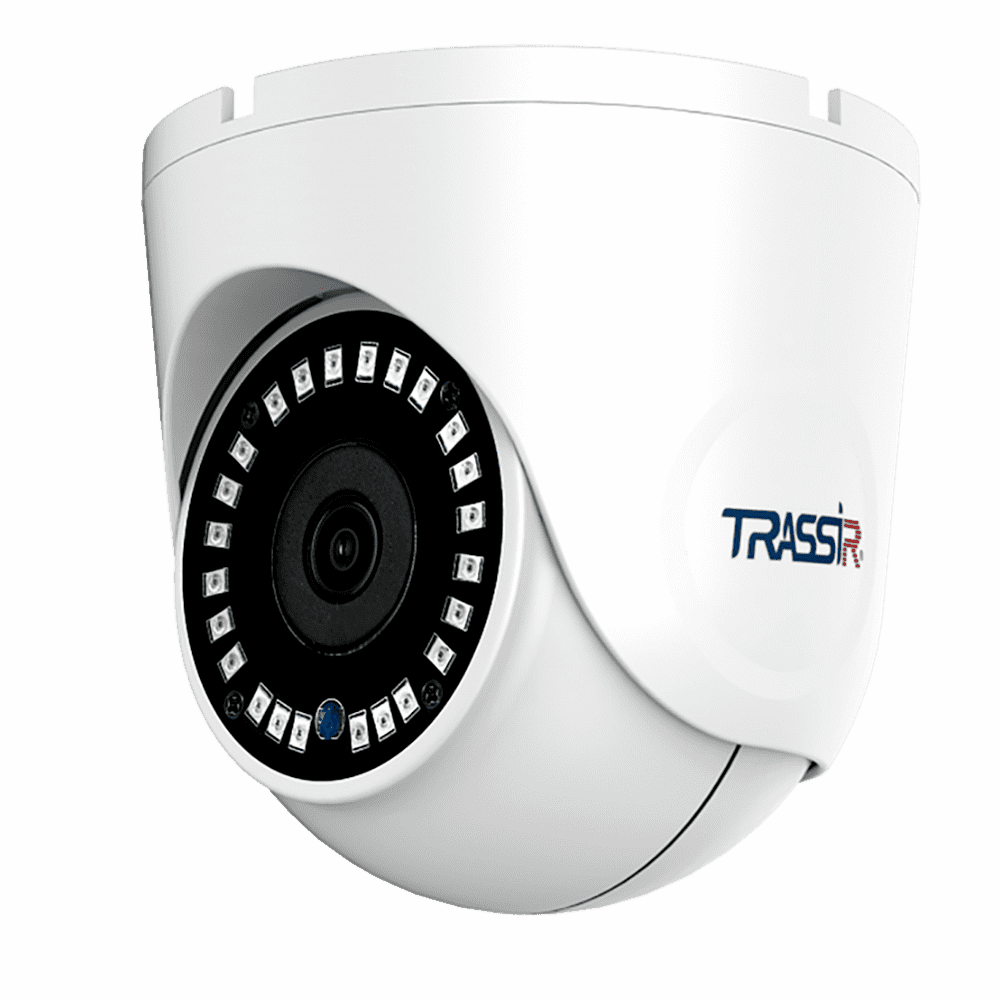

2 MP (1920×1080) TRASSIR TR-D8221WDIR3 v2 1.9 IP camera is adapted for outdoor use regardless of the season: the metal case is protected from moisture and dust according to the IP66 standard, mechanical influences — IK10, operating temperatures from -40 °C… +60 °C, lightning protection - TVS 4000 V.
Functionality
Basics
TR-D8221WDIR3 v2 1.9 is built on a 1/2.8-inch CMOS sensor with 0.005 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 1.9 mm, horizontal viewing angle - 118°, vertical - 62°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.6 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
Functionality
- Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- IR illumination with a range of 30 m.
- Compression H.265+, H.265, H.264.
- The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.
Basics
TR-D8221WDIR3 v2 1.9 is built on a 1/2.8-inch CMOS sensor with 0.005 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with a fixed lens (focal length - 1.9 mm, horizontal viewing angle - 118°, vertical - 62°, aperture - F / 1.8), RJ-45 network port, integrated microphone, slot for microSD up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 5.6 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
Documentation
TR-D8221WDIR3v2_passport_en.pdf
