TRASSIR PC Server 8800R/160-A8-S
Technical Specifications
Number of HDD:
8Bitrate (Mb/sec):
720Power supply:
AC 220 VNet Weight (kg):
15.5Video output:
1 D-SUB (VGA), 1 DVI-D, 1 DisplayPortDimensions (mm):
430х550х176Power consumption, Watt:
600Working temperature, C°:
10...30ºСNetwork interfaces:
2Video compression:
H.265+ | H.265 | H.264 | MPEG4 | MJPEGOverview

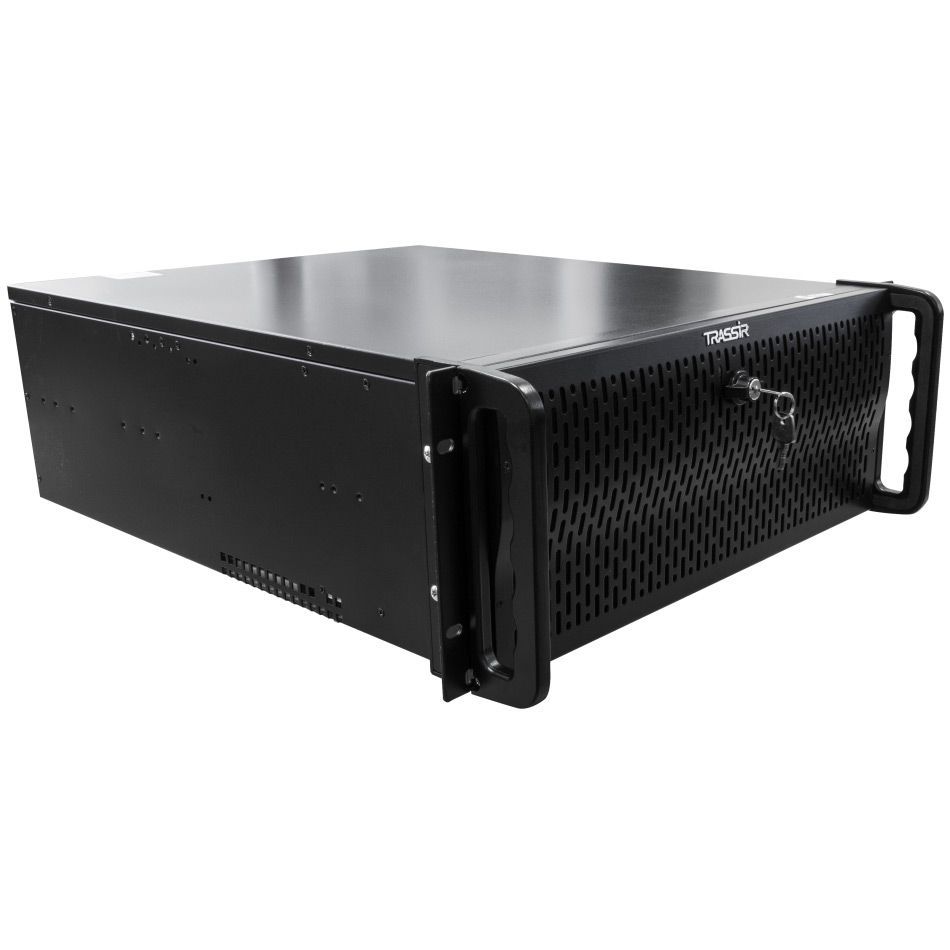

TRASSIR PC Server 8800R / 160-A8-S
Equipment:
Basics:
PC Server series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
Rack (4 U, 19 "rack) IP-video recorder is designed for up to 160 IP cameras. Equipped with two RJ-45 Gigabit network ports, D-SUB (VGA) video outputs, DVI-D, DisplayPort, 8 SATA interfaces for HDD 3.5" any capacity, two USB 2.0 on the front panel, five USB 3.0, one USB 3.1 on the rear panel, PS / 2 for mouse and keyboard, audio in, audio out. Supports H.265, H.265 +, H.264, MPEG4, MJPEG codecs (depending on the IP camera). No restrictions on recording permission.
Equipment:
- Video recorder (assembled and packaged).
- Telescopic guides.
- Keyboard (PS / 2)
- Mouse (USB)
- SATA cable 8 pcs.
- Power cable
- Product data sheet
- Warranty card
- DVR User Manual
- System board user manual (1 in English, 1 in multiple other languages)
Basics:
PC Server series IP video recorders support video analytic modules based on neural networks. The use of neural network technologies has significantly reduced the number of false positives.
Documentation
TRASSIR_PC Server_passport_G27m5_en.pdf
