TR-D7121IR1 v6 1.9
Audio:
ArrayWDR:
RWDR 120 dBResolution:
2MPForm factor:
CubeWi-Fi:
-Maximum video output resolution:
1920x1080Image sensor:
1/2.7" CMOSBitrate (Mb/sec):
8Power supply:
DC 12 V, PoELens (mm):
1.9Net Weight (kg):
0.095Sensitivity(Lux):
0,005Ingress protection:
NoneDimensions (mm):
60x99x32.8Power consumption, Watt:
2Working temperature, C°:
-10…+50Day/Night Mode:
Mechanic IR-filterNetwork interfaces:
RJ-45

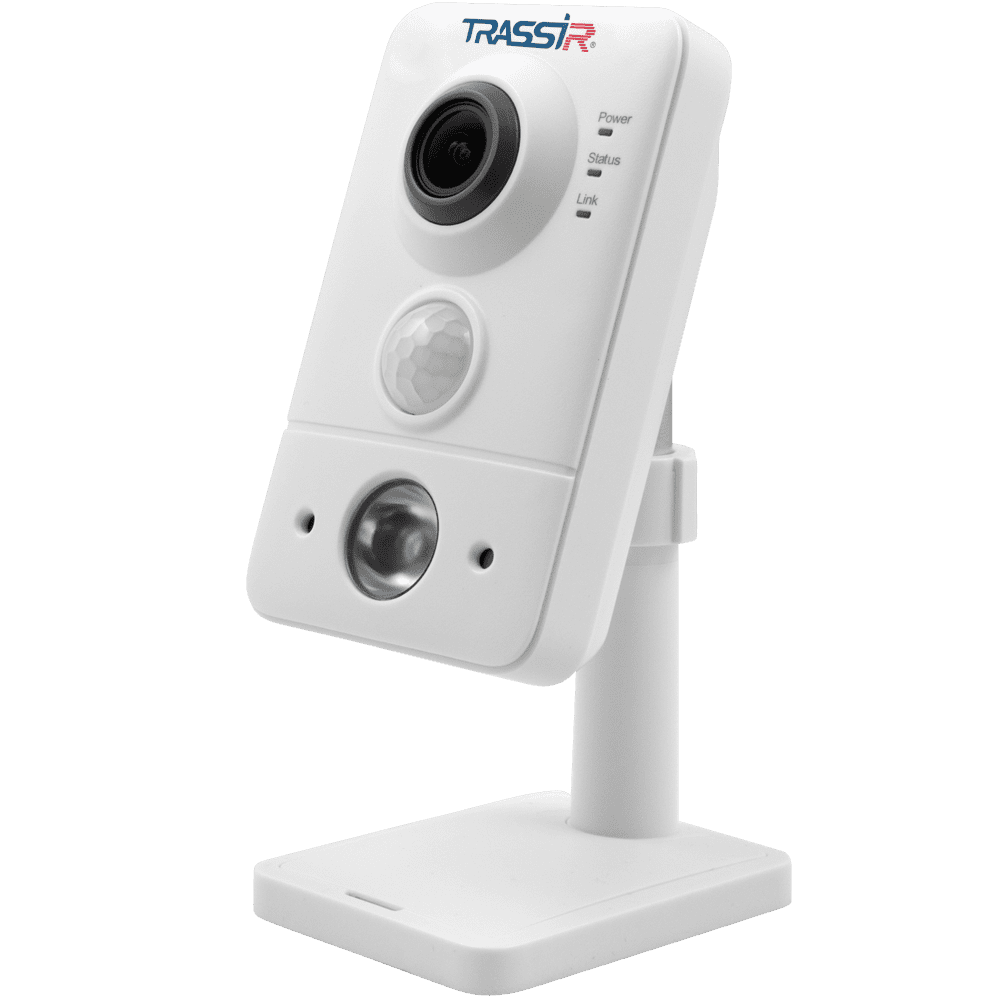

The 2MP (1920 × 1080) v6 (1.9mm) IP camera is designed for indoor use. Equipped with a PIR sensor for detecting movement based on temperature changes. Suitable for night video surveillance - equipped with IR illumination with a range of 10 m. Equipped with a microphone and speaker. On board a complex of analytical functions - motion detection, people detection, detection of crossing a virtual line and intrusion into the zone.
Functionality:
- - WDR 120 dB - neutralizes the effect of different contrast lighting on image quality.
- - 3D DNR - Noise Reduction.
- - Support for vertical resolution with an aspect ratio of 9:16.
- - Defog (anti-fog) - increase the contrast to eliminate the effect introduced by fog, smoke.
- - BLC - Backlight Compensation.
- - Day / night mode with ICR, with sufficient illumination refracting IR rays, and without illumination shifting to the side to increase the sensitivity of the matrix and the backlight.
- - Compression with H.264, H.264 +, H.265, H.265 + codecs.
- - Broadcast speed - 25 frames per second.
Basics:
TR-D7121IR1 v6 (1.9 mm) is equipped with a 1.9 mm fixed focal length lens, 82 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Equipped with an RJ-45 network port, a microSD slot with a capacity of up to 128 MB, a power connector. Power supply - 12V DC or PoE. The maximum power consumption is 2 W. Dimensions - 60.0 × 99.0 × 32.8 mm. Weight - 95 g.
TR-D7121IR1v6_passport_en.pdf
