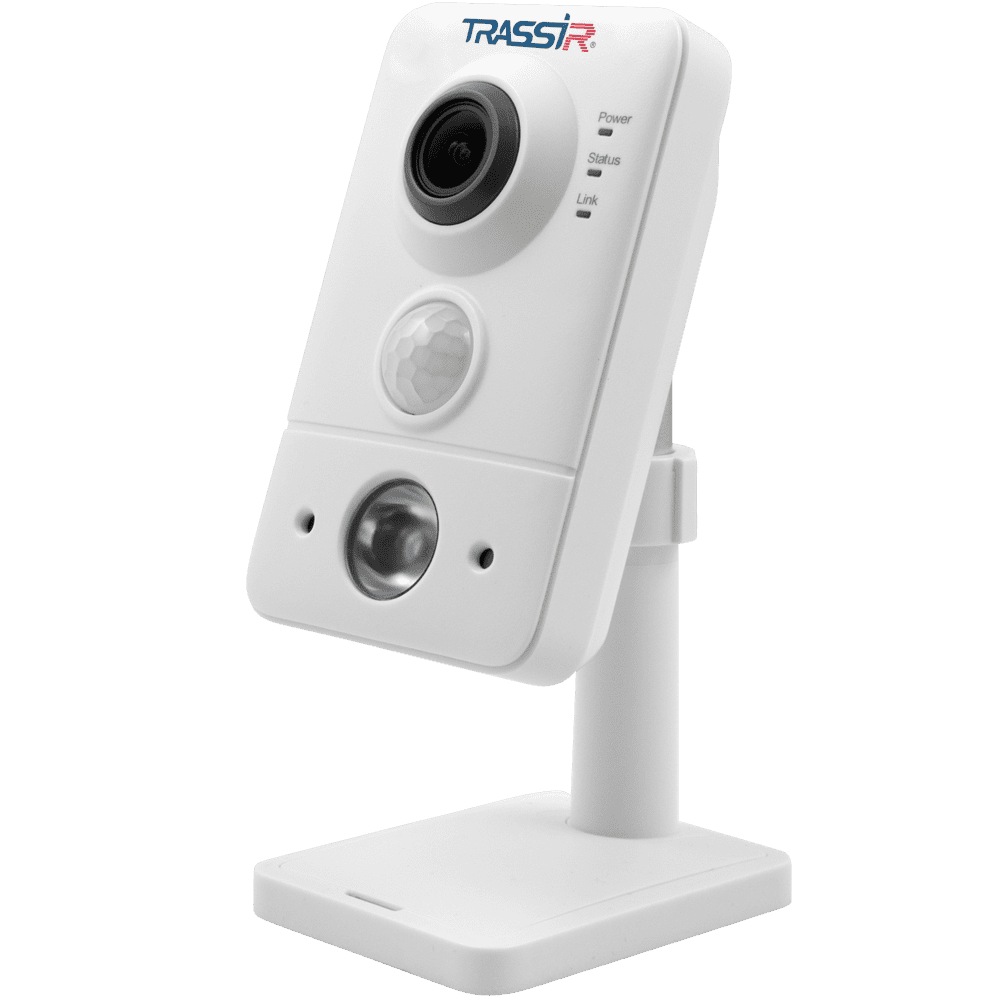

TR-D7251WDIR2W v2 2.8
Technical Specifications
Audio:
ArrayWDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
CubeWi-Fi:
YesMaximum video output resolution:
2592x1920Bitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
2.8Net Weight (kg):
0.095Sensitivity(Lux):
0,003Local storage:
microSD up to 128 GBIR:
YesCase material:
PlasticDimensions (mm):
60 x 99 x 32.8Power consumption, Watt:
3.5Working temperature, C°:
-10°C ... +50°CDay/Night Mode:
Mechanic IR-filterVideo compression:
Н.265+ / Н.265 / H.264+ / H.264Overview
5 MP (2880 × 1632) TRASSIR TR-D8251WDCL3 2.8 IP camera is adapted for outdoor use at any time of the year and day - in places of direct access under the influence of precipitation: protection of the case from moisture and dust - IP66, from mechanical influences - IK10, working temperatures - -40 °C ... +60 °C, lightning protection - TVS 4000 V, range of the integrated backlight - 30 m.
Functionality
Basics
TR-D8251WDCL3 2.8 is equipped with a 2.8mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 4.5 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
Functionality
- Software motion detection, people, faces, cars.
- Detection of virtual line crossing, area intrusion, area exit, loitering.
- People counting.
- Built-in microphone.
- WDR 120dB - Minimizes the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor Mode - Supports vertical resolution with a 9:16 aspect ratio.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- ROI - fixing on the selected area and a parallel decrease in resolution in other parts of the frame.
- BLC - backlight compensation.
- Frame rate - 25 fps, bit rate - 8 Mbps
- Compression H.265+, H.265, H.264.
Basics
TR-D8251WDCL3 2.8 is equipped with a 2.8mm fixed focal length lens with a 101° horizontal and 58° vertical field of view. Equipped with RJ-45 network port, audio input, audio output, alarm input, alarm output, microSD slot up to 128 MB, power connector. Power supply - DC 12 V, PoE. The maximum power consumption is 4.5 W. Size - Ø93.0×92.2 mm. Weight - 400 g.
Documentation
TR-D7251WDIR2Wv2_passport_en.pdf
