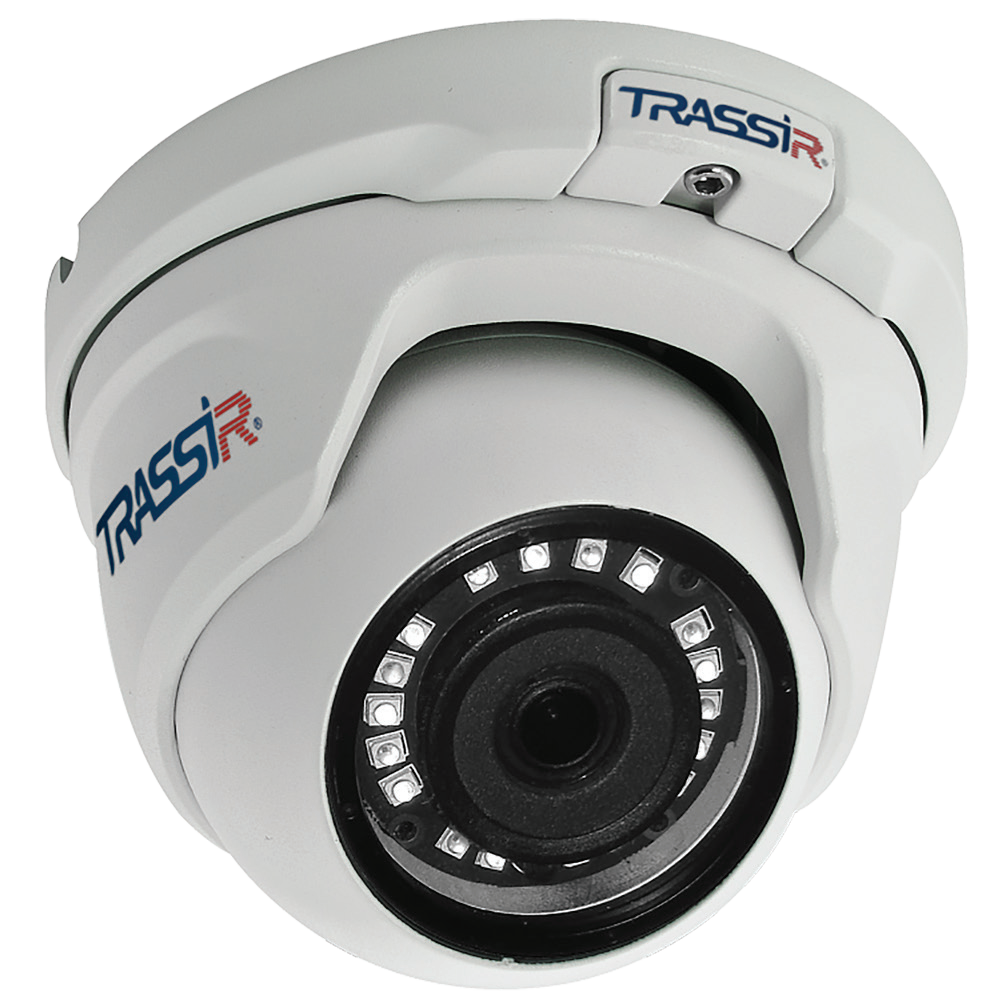

The 4 MP (2560×1440) IP camera TRASSIR TR-D4S5 v3 3.6 is supplied in a metal housing, protected from dust and moisture according to IP66 standards, which, combined with a working temperature range of -40°C to +60°C and TVS 4000 V surge protection, ensures stable operation outdoors throughout the year.

Functionality:

· Detection: People, motion, crossing of virtual lines, intrusion into zones.

· IR illumination with a range of 25 meters.

· WDR 105 dB: Minimization of the influence of changes in illumination level on image quality.

· 3D DNR: Noise reduction.

· Defog: Contrast enhancement to neutralize blurring caused by fog.

· BLC: Backlight compensation.

· Day/Night mode with ICR: In sufficient light, the filter refracts IR rays to optimize color reproduction, while in darkness, it mechanically shifts to increase sensitivity.

· Compression: H.265+, H.265, and H.264.

· Transmission speed: 25 fps. Bitrate: 8 Mbps.

· Protocols: TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UpnP, SMTP, ONVIF.

Basics:

The TR-D4S5 v3 3.6 is built on a 1/3" CMOS sensor with a sensitivity of 0.005 lux. It is equipped with a fixed-focus lens with a focal length of 3.6 mm, providing horizontal and vertical viewing angles of 77° and 42°, respectively. Power can be supplied from a DC 12 V source or via PoE. Maximum power consumption is 4 W. The camera dimensions are 106.00×96.87×73.50 mm, and it weighs 335 g.
