TR-D2361WDDL4 2.8
Audio:
ArrayWDR:
WDR (130 dB)Frame rate:
25Electronic shutter speed:
1 ~ 1/100,000 sIR range:
up to 40 mDigital noise Reduction:
3D DNRCorridor mode:
NoResolution:
6MPForm factor:
BulletMaximum video output resolution:
3200x1800Image sensor:
1/1.8" CMOSBitrate (Mb/sec):
up to 16MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.520 / 0.825Sensitivity(Lux):
0.0005Lux (F1.0)Local storage:
MicroSD up to 512GBIngress protection:
IP67, IK10IR:
YesCase material:
MetalVideo input:
NoLightning protection:
TVS 4000VPower PoE:
7 WDimensions (mm):
Ø74.4 x 176.3Power consumption, Watt:
DC: 5.4 W PoE: 7 WWorking temperature, C°:
-40°C … +60°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H108.8°±5°, V56.4°±5°Class PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264+ / H.264 / MJPEG

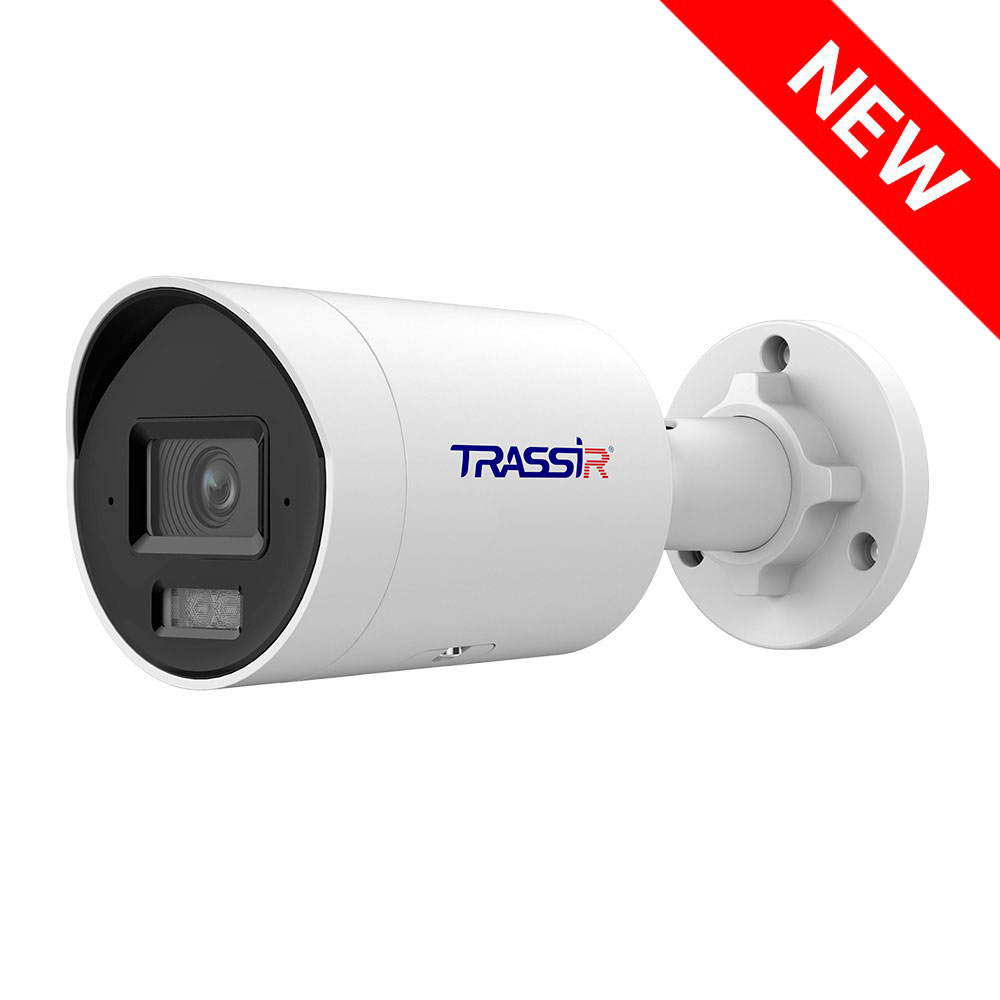

The TRASSIR TR-D2361WDDL4 2.8 is a bullet outdoor camera with dual intelligent illumination for 24/7 video surveillance. Built with a 1/1.8"" CMOS sensor, the camera produces images with a maximum resolution of 6 MP (3200x1800). Real WDR (130 dB) and 3D DNR noise reduction are available for operation in challenging lighting conditions. The camera is equipped with IR illumination up to 40 meters and LED illumination up to 40 meters (warm white), helping to capture informative video in the dark.
H.265+ / H.265 / H.264+ / H.264 / MJPEG compression and a bitrate of up to 16 Mbps simplify storing and transmitting a video stream. A built-in video archive (Edge Storage) is supported for local recording—recording to a MicroSD card up to 512 GB with HotSwap support. Supports hardware analytics: people and face detection, line crossing, area control, people counting, and vehicle detection. A built-in microphone is available. The camera is designed for outdoor installation: IP67 and IK10 protection, a TVS 4000V surge suppressor, and an operating temperature of -40°C to +60°C. Power is available via PoE (802.3af) or 12V DC, PoE class 3.
TR-D2361WDDL4 2.8.pdf
