Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/12,500 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2592x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8 - 8 (motorzoom)

Net Weight (kg):

0.460 / 0.575

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

8.8W

Dimensions (mm):

184.67 x 66.50 x 63.05

Power consumption, Watt:

DC: 6.5W PoE: 8.8W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H90°- 44°±5°, V65°- 32°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

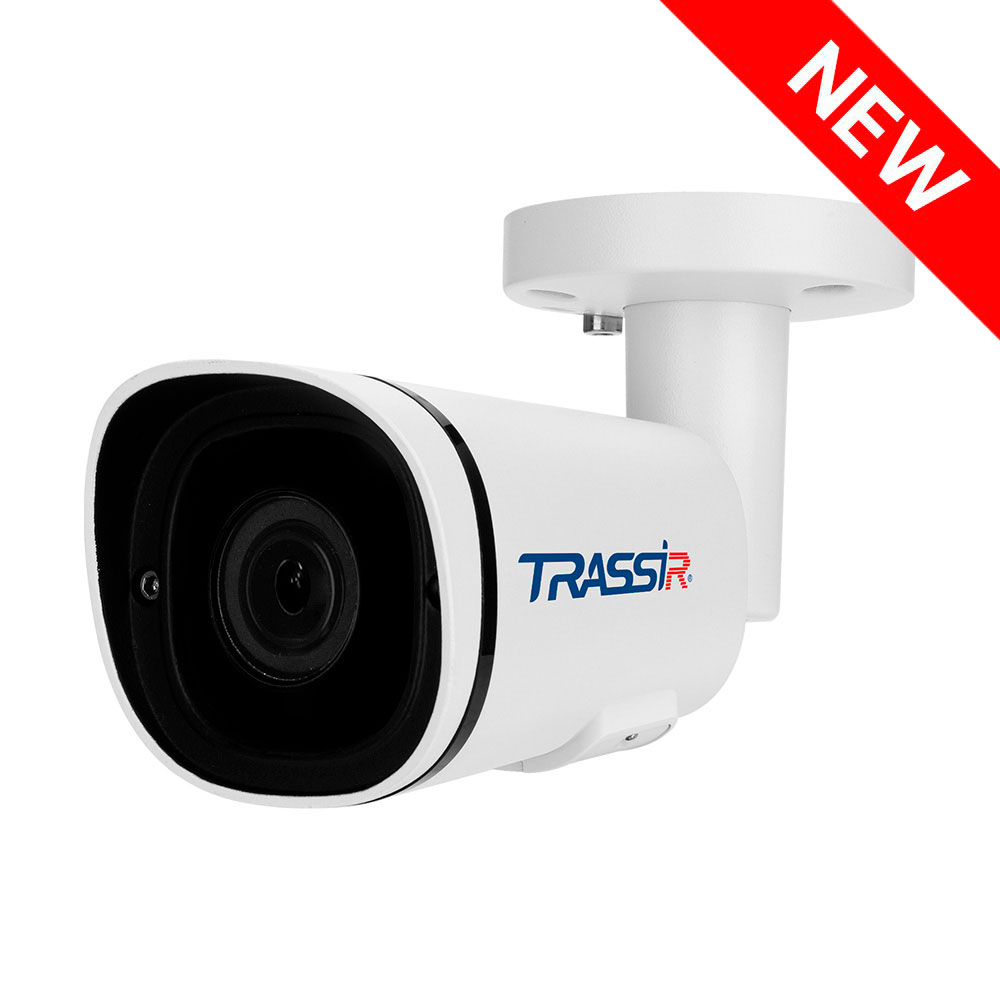

TRASSIR TR-D2252WDZIR4 v3 (2.8-8 mm)

The TRASSIR TR-D2252WDZIR4 v3 2.8–8 IP camera is a bullet-style device designed for outdoor video surveillance. It is built around a 1/2.8" 5 MP CMOS sensor and delivers images at a resolution of 2592 × 1920.

Built-in IR illumination with a range of up to 40 meters and a mechanical IR cut filter in Day/Night mode enable reliable video capture in low-light conditions. A motorized 2.8–8 mm varifocal lens (motorized zoom) allows flexible scene adjustment, while image processing functions — including Real WDR with a dynamic range of 120 dB, 3D DNR noise reduction, and corridor mode — enhance detail visibility in challenging environments.

The camera supports H.265+ / H.265 / H.264 video compression, a wide range of network protocols (TCP/IP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, UPnP, SMTP, NTP, and ONVIF), and local storage via a microSD card with a capacity of up to 512 GB.

Connectivity is provided via an RJ45 network interface and a reset button, and power is supplied via PoE (802.3af) or 12 V DC. The camera features an IP67-rated enclosure for dust and water protection, is designed for operation in temperatures from −40 °C to +60 °C, includes built-in 4000 V TVS surge protection, and is backed by a 5-year warranty.

Documentation

TR-D2252WDZIR4 v3 2.8-8.pdf
