TR-D9151IR2 v2 1.4
Technical Specifications
Audio:
ArrayWDR:
RWDR 120 dBFrame rate:
25Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
FisheyeWi-Fi:
-Maximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
8Power supply:
12V DCLens (mm):
1.4Net Weight (kg):
0.380Sensitivity(Lux):
0,003Local storage:
microSD up to 128 GBIngress protection:
IP65IR:
YesCase material:
MetalLightning protection:
TVS 4000VDimensions (mm):
Ø120 x 58Power consumption, Watt:
6.6Working temperature, C°:
-30°C ... +60°CDay/Night Mode:
Mechanic IR-filterClass PoE :
802.3af/atVideo compression:
Н.265+ / Н.265 / H.264Overview

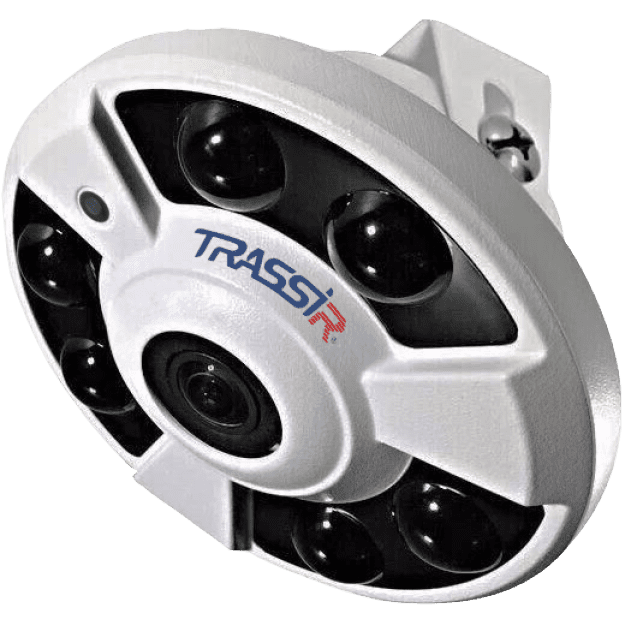

5 MP (2560 × 1920) TRASSIR TR-D9151IR2 v2 1.4 IP camera is adapted for year-round outdoor operation: body protection against moisture and dust - IP65, operating temperatures from -30 °C ... +60 °C, lightning protection - TVS 4000 V.
Functionality
Basics
TR-D9151IR2 v2 1.4 is based on a 1/2.8 inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Bitrate - 8 Mbps. Equipped with fisheye lens (1.4mm focal length, 180° field of view, F/1.8 aperture), RJ-45 network port, integrated microphone, audio in, audio out, alarm in, alarm out, microSD slot up to 128 GB . Power supply - DC 12 V, PoE. The maximum power consumption is 7.2 W. Size — Ø120×58 mm. Weight - 380 g.
Functionality
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - noise reduction.
- Corridor mode - vertically oriented resolution to reduce the blind zone.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - digital backlight correction to enhance the visibility of shadowed objects.
- IR illumination with a range of 25 m.
- Compression H.265+, H.265, H.264.
Basics
TR-D9151IR2 v2 1.4 is based on a 1/2.8 inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Streams at 25 frames per second. Bitrate - 8 Mbps. Equipped with fisheye lens (1.4mm focal length, 180° field of view, F/1.8 aperture), RJ-45 network port, integrated microphone, audio in, audio out, alarm in, alarm out, microSD slot up to 128 GB . Power supply - DC 12 V, PoE. The maximum power consumption is 7.2 W. Size — Ø120×58 mm. Weight - 380 g.
Documentation
TR-D9151IR2v2_passport_en.pdf
