TR-D4151IR1 v7 2.8

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 15 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Dome

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.31 / 0.40

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

5.5W

Dimensions (mm):

Ø102.20 x 56.38

Power consumption, Watt:

DC: 3.4W PoE: 5.5W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H98°, V71°

Video compression:

Н.265+ / Н.265 / H.264

Overview

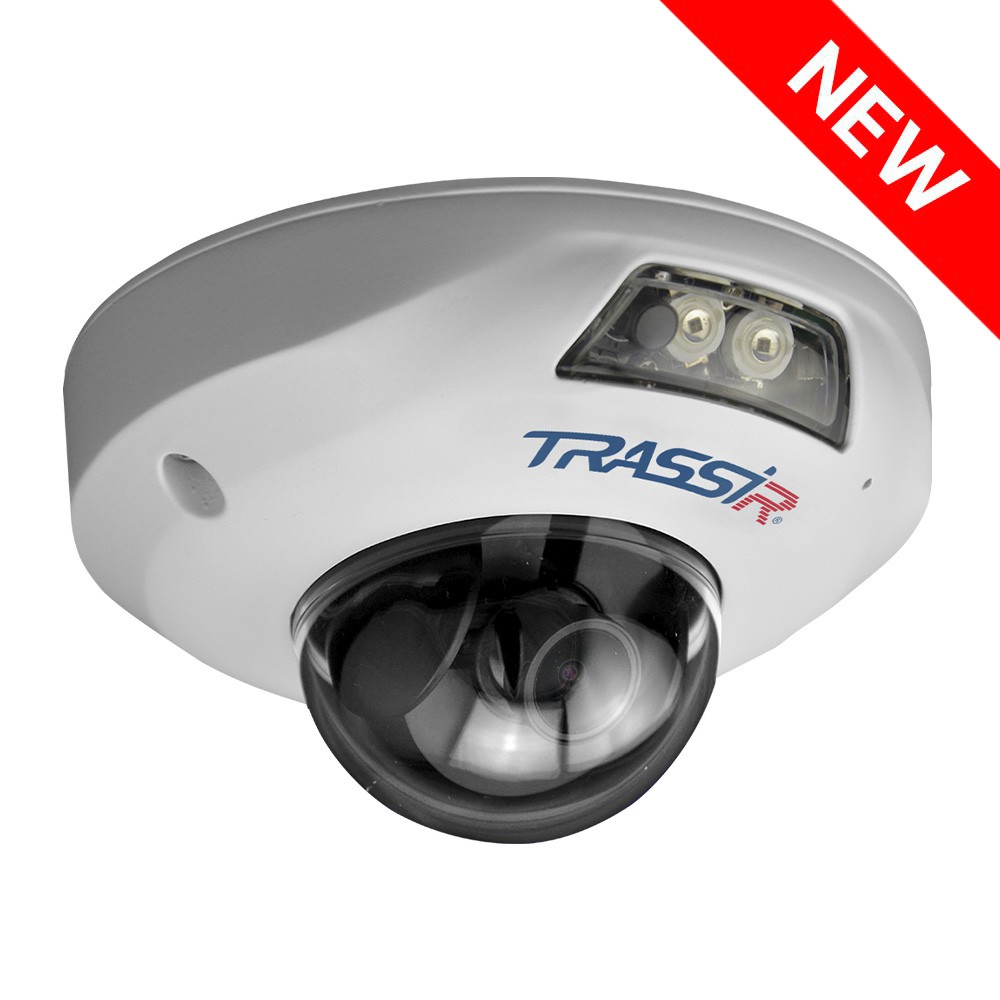

TRASSIR TR-D4151IR1 v7 (2.8 mm)

The TRASSIR TR-D4151IR1 v7 2.8 is a 5 MP (2560×1920) IP camera adapted for year-round outdoor use in areas with direct public access. It features a robust metal housing rated IK10 for impact protection and IP66 for resistance to dust and moisture. The camera operates in temperatures ranging from –40 °C to +60 °C and includes 4000 V TVS lightning protection.

Parameters:

Detection of people, vehicles, line crossing, and area entry/exit
WDR 120 dB – reduces the impact of high-contrast lighting on image quality
3D DNR – spatial noise reduction
Corridor mode – optimized for vertically oriented video
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed focal length lens (2.8 mm), horizontal viewing angle: 98°, vertical viewing angle: 71°, aperture: F/1.6
Mechanical IR-cut filter for accurate color reproduction under various lighting conditions
IR illumination range: up to 15 meters
Video compression formats: H.265+, H.265, H.264
Built-in microphone
Two-way audio: audio input and audio output
SD card slot supporting up to 256 GB (hot-swappable)
Power supply: DC 12 V or PoE
Maximum power consumption: 5.5 W
Dimensions: Ø102.20 × 56.38 mm
Weight: 310 g
