TR-D3223WDZIR3 v2 2.7-13.5

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Dome

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.7 - 13.5 (motorzoom)

Net Weight (kg):

0.520

Sensitivity(Lux):

0,003

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø116.10 x 96.51

Power consumption, Watt:

5.3

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

Mechanic IR-filter

Video compression:

Н.265+ / Н.265 / H.264

Overview

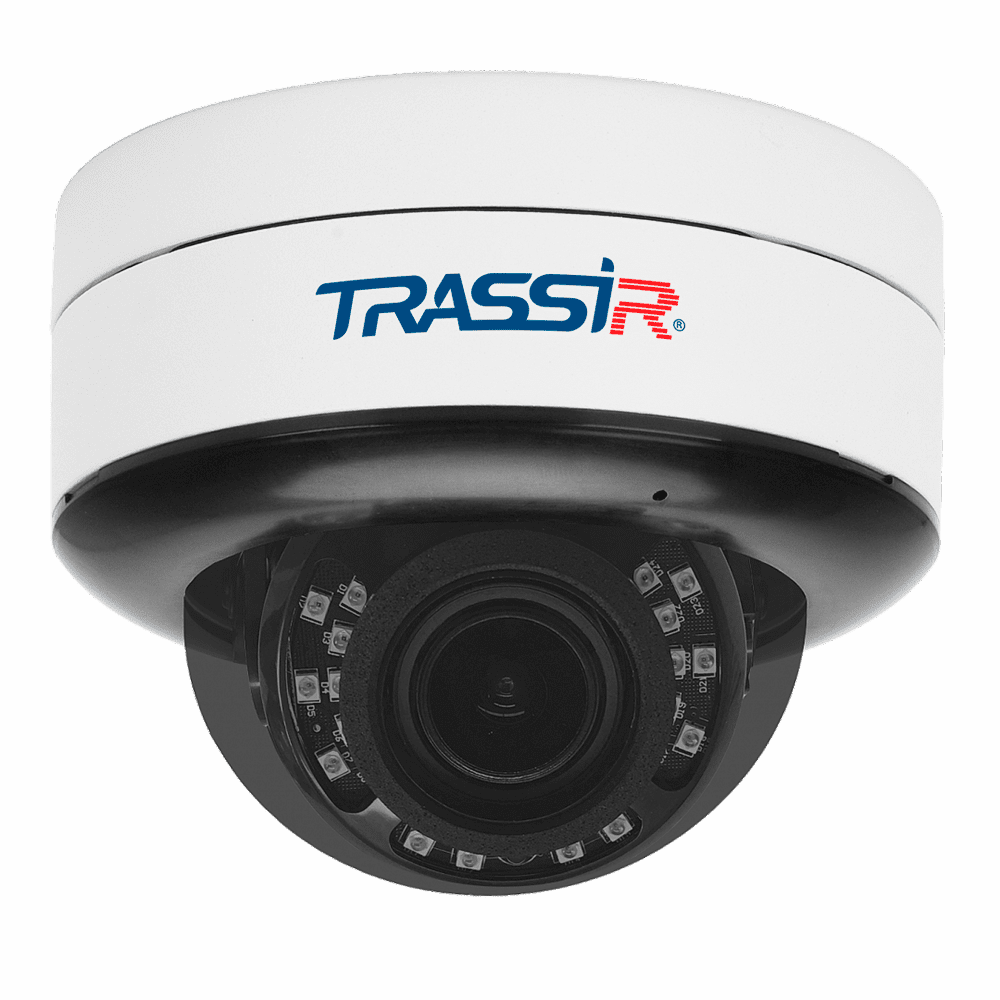

2 MP (1920×1080) IP camera TRASSIR TR-D3223WDZIR3 v2 2.7–13.5 is adapted for outdoor use regardless of the season and location: the case is made of metal, protected from mechanical impacts according to IK10, from moisture and dust - IP66, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.

Functionality

Motorized lens with a focal length of 2.7 ~ 13.5mm, horizontal field of view 101° ~ 30°, vertical 55° ~ 18°, aperture F/1.3.
The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.
Built-in microphone.
Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
3D DNR - spatial noise reduction.
Corridor mode - shooting in vertically oriented resolution.
Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
BLC - backlight compensation.
IR illumination with a range of 30 m.
Compression H.265+, H.265, H.264.

Basics

TR-D3223WDZIR3 v2 2.7–13.5 is built on a 1/2.8-inch CMOS sensor with 0.003 lux sensitivity. Supports day / night mode with ICR: in sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the sensor to increase its sensitivity. Bitrate - 8 Mbps. Equipped with RJ-45 network port, audio input and output, alarm input and output, microSD slot up to 128 GB. Power supply - DC 12 V, PoE. The maximum power consumption is 6.2 W. Size - Ø116.10×96.51 mm. Weight - 520 g.
