TR-D2151IR3 v7 3.6

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 35 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2560x1920

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.460 / 0.565

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

6.7W

Dimensions (mm):

184.7 x 66.5 x 63.05

Power consumption, Watt:

DC: 4.6W PoE: 6.7W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H84°, V60°

Video compression:

Н.265+ / Н.265 / H.264

Overview

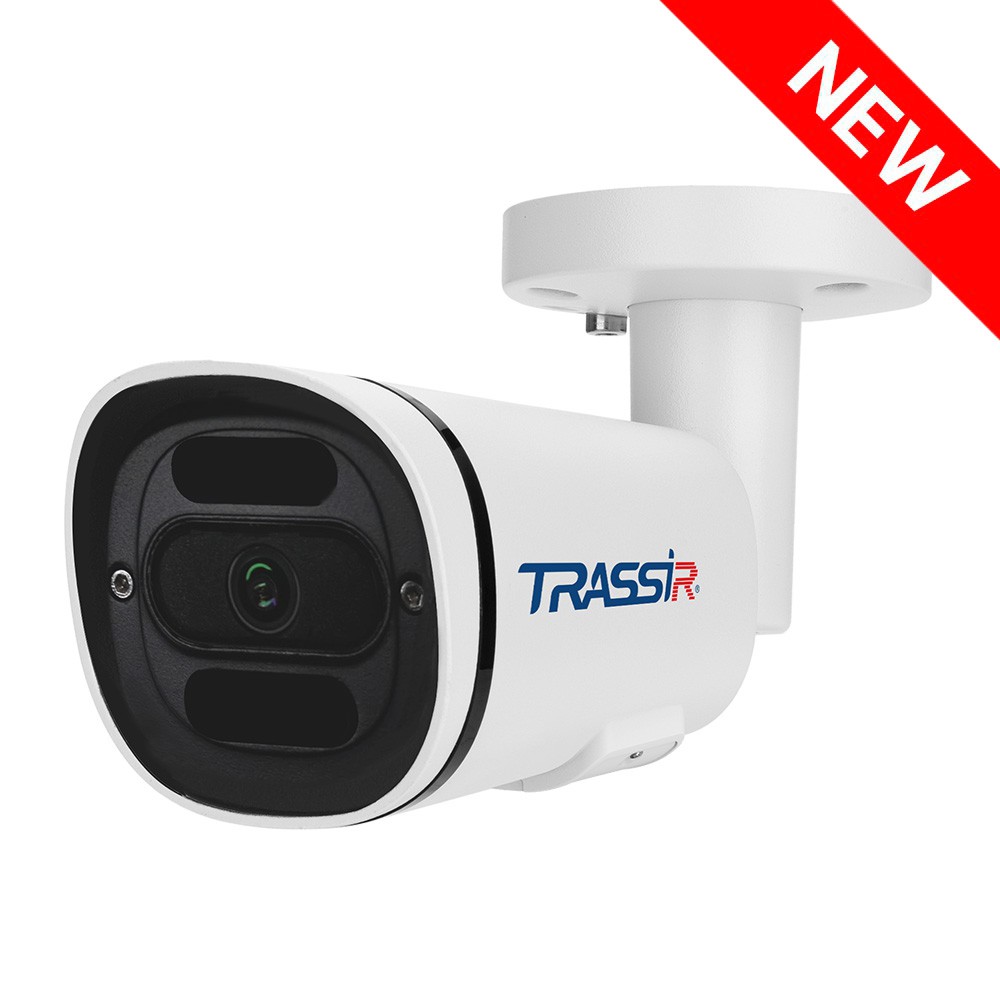

TRASSIR TR-D2151IR3 v7 (3.6 mm)

Designed for year-round outdoor use, the 5 MP (2560×1920) IP camera TRASSIR TR-D2151IR3 v7 3.6 features a metal housing protected against moisture and dust according to the IP67 standard. It operates within a temperature range of –40 °C to +60 °C and includes 4000 V TVS lightning protection.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, and area entry and exit
WDR 120 dB to reduce the effects of high-contrast lighting on image quality
3D DNR for spatial noise reduction
Corridor mode for vertically oriented video capture
1/2.8" CMOS sensor with 0.003 lx sensitivity
Fixed focal length lens: 3.6 mm focal length, 84° horizontal viewing angle, 60° vertical viewing angle, F/1.6 aperture
Video compression codecs: H.265+, H.265, H.264
Night surveillance with IR illumination up to 35 meters
Local storage via SD card slot supporting up to 256 GB
Two-way audio: built-in microphone, audio input, and audio output
Power supply: DC 12 V or PoE
Maximum power consumption: 6.7 W
Dimensions: 184.67 × 66.50 × 63.05 mm
Weight: 460 g
