TR-D8121IR3 v7 3.6

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 30 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Sphere

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

3.6

Net Weight (kg):

0.38 / 0.48

Sensitivity(Lux):

0.005Lux (F1.6)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP66, IK10

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

5.5W

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

DC: 3.5W PoE: 5.5W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H88°±5°, V48°±5°

Video compression:

Н.265+ / Н.265 / H.264

Overview

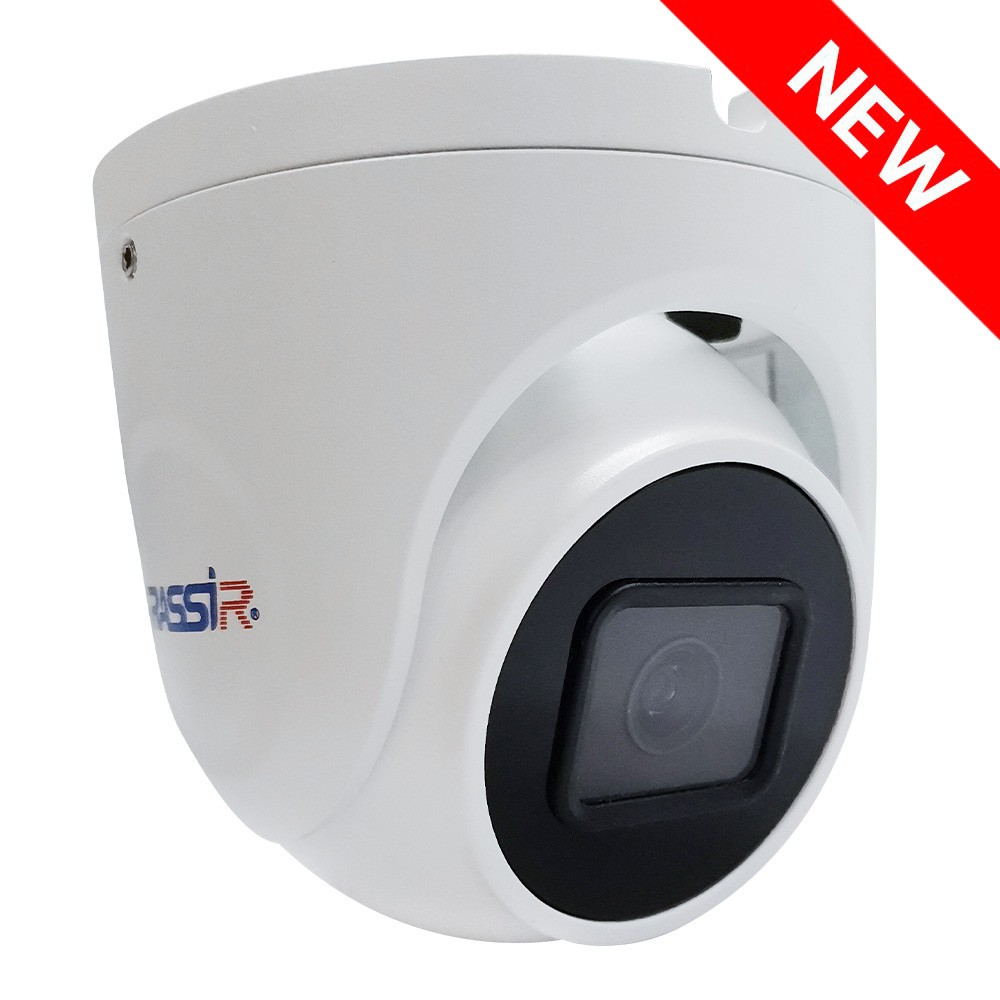

TRASSIR TR-D8121IR3 v7 (3.6 mm)

The 2 MP (1920×1080) IP camera TRASSIR TR-D8121IR3 v7 3.6 is designed for outdoor use in areas with direct access, at any time of year and day. Its metal body is protected against moisture and dust according to the IP66 standard and against mechanical impacts according to the IK10 standard. The operating temperature range is –40 °C to +60 °C. Lightning protection is provided by a TVS 4000 V device. The integrated IR illumination has a range of 30 meters.

Parameters:

Blackface IR illumination technology
Detection of people, vehicles, line crossing, entry, and exit from the area
Real WDR 120 dB — reduces the effects of multi-contrast lighting on image quality
3D DNR — spatial noise reduction for clearer images
Corridor mode — optimized for vertically oriented video
1/2.8" CMOS sensor with 0.005 lx sensitivity
Fixed 3.6 mm lens with an 88° horizontal and 48° vertical viewing angle, aperture F/1.6
Mechanical IR filter — blocks infrared rays when there is sufficient light
Compression formats: H.265+, H.265, H.264
Built-in microphone
SD card slot supporting up to 256 GB; hot-swappable card
Network port, audio input, audio output, reset button
Power supply: DC 12 V or PoE
Maximum power consumption: 3.5 W
Dimensions: Ø93 × 92.2 mm
Weight: 380 g
