TR-D7151IR1 v7 2.8
Audio:
ArrayWDR:
real WDR (120 dB)Frame rate:
25Electronic shutter speed:
1/2 ~ 1/50,000 sIR range:
up to 10 mDigital noise Reduction:
3D DNRCorridor mode:
YesResolution:
5MPForm factor:
CubeMaximum video output resolution:
2560x1920Image sensor:
1/2.8" CMOSBitrate (Mb/sec):
up to 8MbpsPower supply:
PoE (802.3af) / 12V DCLens (mm):
2.8Net Weight (kg):
0.095 / 0.220Sensitivity(Lux):
0.003Lux (F1.6)Local storage:
MicroSD up to 256GBIR:
YesCase material:
PlasticVideo input:
NoLightning protection:
NoPower PoE:
2.3WDimensions (mm):
129 x 99 x 60Power consumption, Watt:
DC: 2.3W PoE: 4.4WWorking temperature, C°:
-10°C … +50°CDay/Night Mode:
Mechanical ICRNetwork interfaces:
RJ-45Field of view:
H98°, V71°Video compression:
Н.265+ / Н.265 / H.264

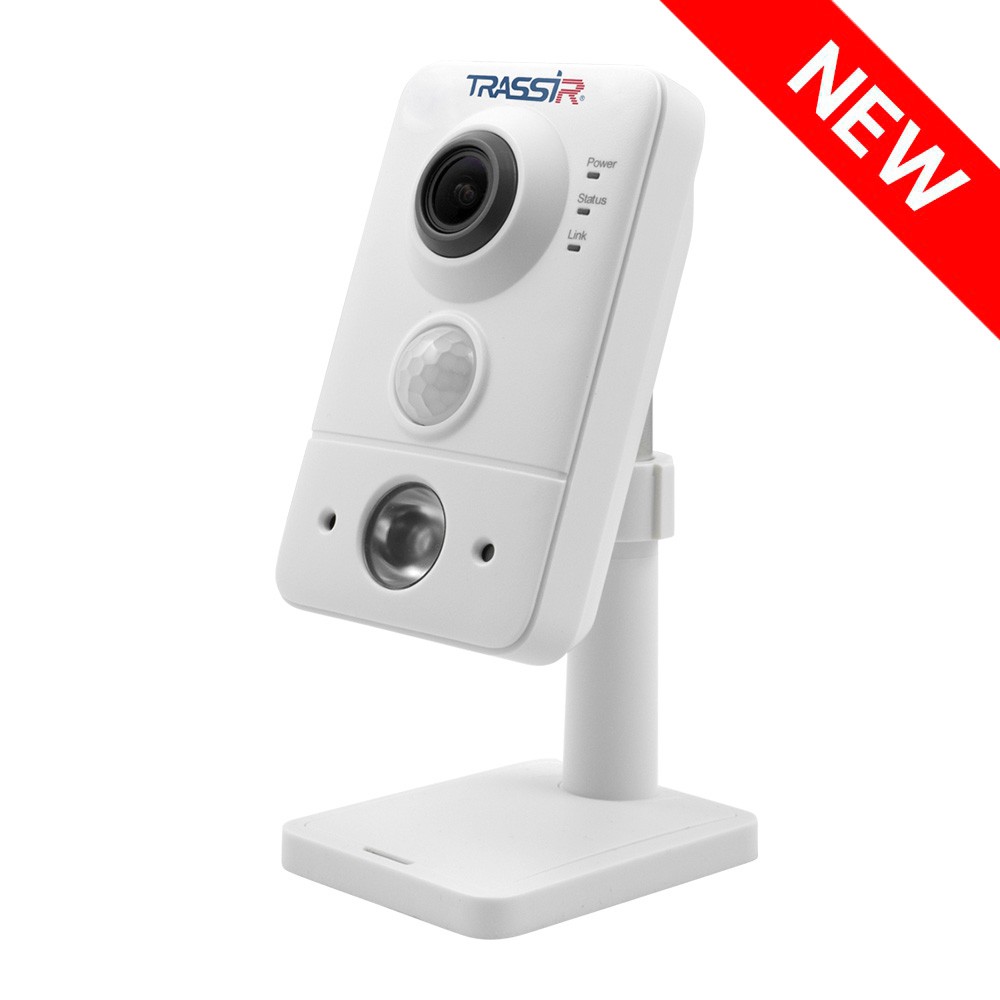

The TRASSIR TR-D7151IR1 v7 2.8 is a 5 MP (2560×1920) IP camera designed for indoor use in environments with controlled climate conditions. It operates reliably within a temperature range of –10 °C to +50 °C and features a built-in PIR sensor that detects movement through changes in thermal radiation.
Parameters:
- Detection of people, vehicles, line crossing, and area entry/exit
- WDR 120 dB – improves image quality in high-contrast lighting
- 3D DNR – spatial noise reduction for cleaner images
- Corridor mode – optimized for vertically oriented scenes
- 1/2.8" CMOS sensor with 0.003 lx sensitivity
- Fixed focal length lens (2.8 mm), horizontal viewing angle: 98°, vertical viewing angle: 71°, aperture: F/1.6
- Mechanical IR-cut filter for accurate color reproduction in varying lighting
- Video compression formats: H.265+, H.265, H.264
- Built-in microphone and speaker for two-way audio communication
- IR illumination range: up to 10 meters for night surveillance
- SD card slot supporting up to 256 GB (hot-swappable)
- Case material: plastic
- Power supply: DC 12 V or PoE
- Maximum power consumption: 4.4 W
- Dimensions: 129 × 99 × 60 mm
- Weight: 95 g
