Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

5MP

Form factor:

Bullet

Maximum video output resolution:

2592x1920

Image sensor:

1/1.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8

Net Weight (kg):

0.48 / 0.58

Sensitivity(Lux):

0 Lux (F1.0)

Local storage:

MicroSD up to 256GB

Ingress protection:

IP67, IK08

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

10W

Dimensions (mm):

184.67 x 66.5 x 63.05

Power consumption, Watt:

DC: 4.7W PoE: 10W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

FTC

Network interfaces:

RJ-45

Field of view:

H108.1°±5°, V53°± 5°

Video compression:

Н.265+ / Н.265 / H.264 / MJPEG

Overview

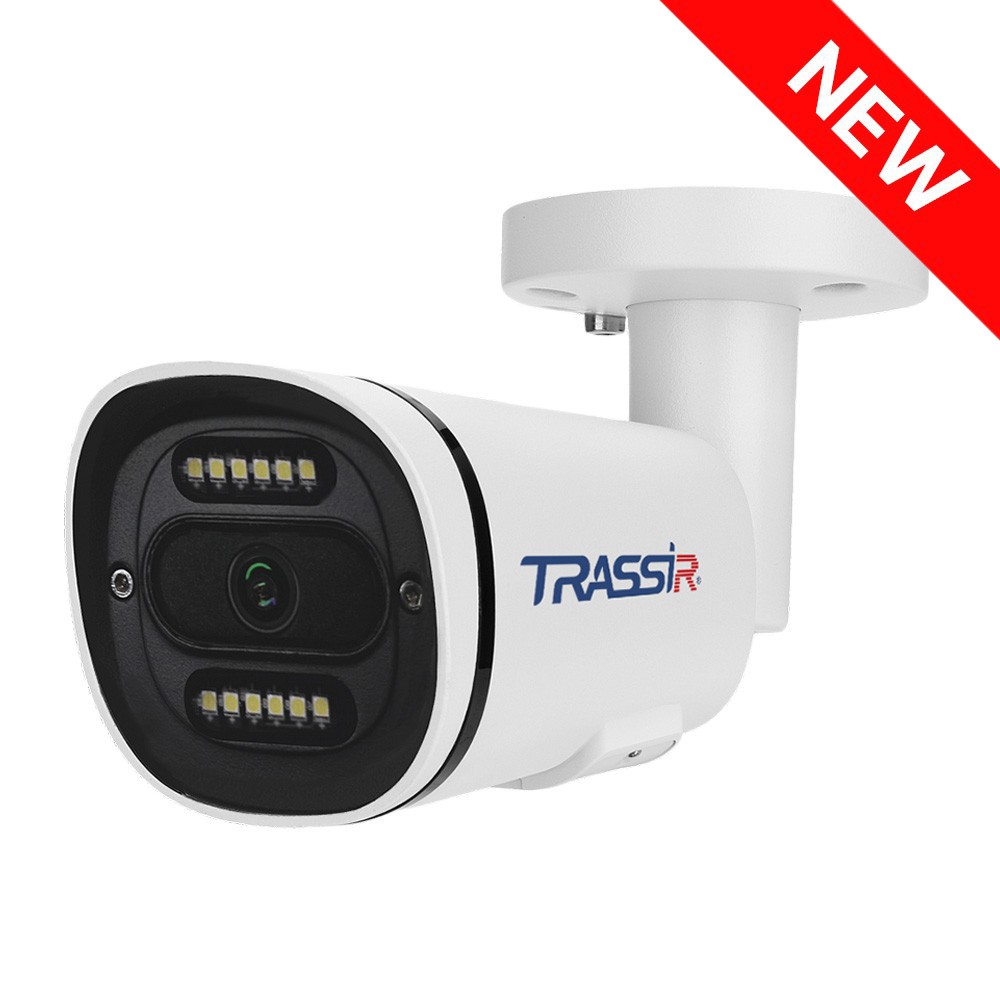

TRASSIR TR-D2251WDDL4 v3 (2.8 mm)

The TRASSIR TR-D2251WDDL4 v3 2.8 is a 5 MP IP camera housed in a durable metal casing. It is protected against dust and moisture according to the IP67 standard, and against mechanical impact with an IK08 rating. Combined with an operating temperature range of -40 °C to +60 °C and TVS 4000 V lightning protection, this ensures reliable outdoor performance year-round.

Parameters:

Detection of faces, people, vehicles; line crossing; entry and exit from zones; loitering; people counting
WDR 120 dB – reduces the impact of high-contrast lighting on image quality
3D DNR – spatial noise reduction
24/7 color video recording
Corridor mode – vertically oriented video for narrow spaces
1/1.8" CMOS sensor
Fixed focal length lens (2.8 mm) with a horizontal viewing angle of 108.1°, vertical viewing angle of 53.0°, and an aperture of F/1.0
Alarm input and output
Video compression: H.265+, H.265, H.264, MJPEG
Night surveillance – combined IR and LED illumination, range: 40 m
Local data storage – SD card slot (up to 256 GB)
Two-way audio – built-in microphone, audio input, and audio output
Power supply – DC 12 V, PoE
Maximum power consumption – 10 W
Dimensions – 184.67 × 66.50 × 63.05 mm
Weight – 480 g
