Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/2 ~ 1/50,000 s

IR range:

up to 40 m

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8 - 8 (motorzoom)

Net Weight (kg):

0.460 / 0.575

Sensitivity(Lux):

0.003Lux (F1.6)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

7.6W

Dimensions (mm):

184.67 × 66.50 × 63.05

Power consumption, Watt:

DC: 6.4W PoE: 7.6W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR

Network interfaces:

RJ-45

Field of view:

H99°- 48°±5°, V52°- 26°±5°

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264

Overview

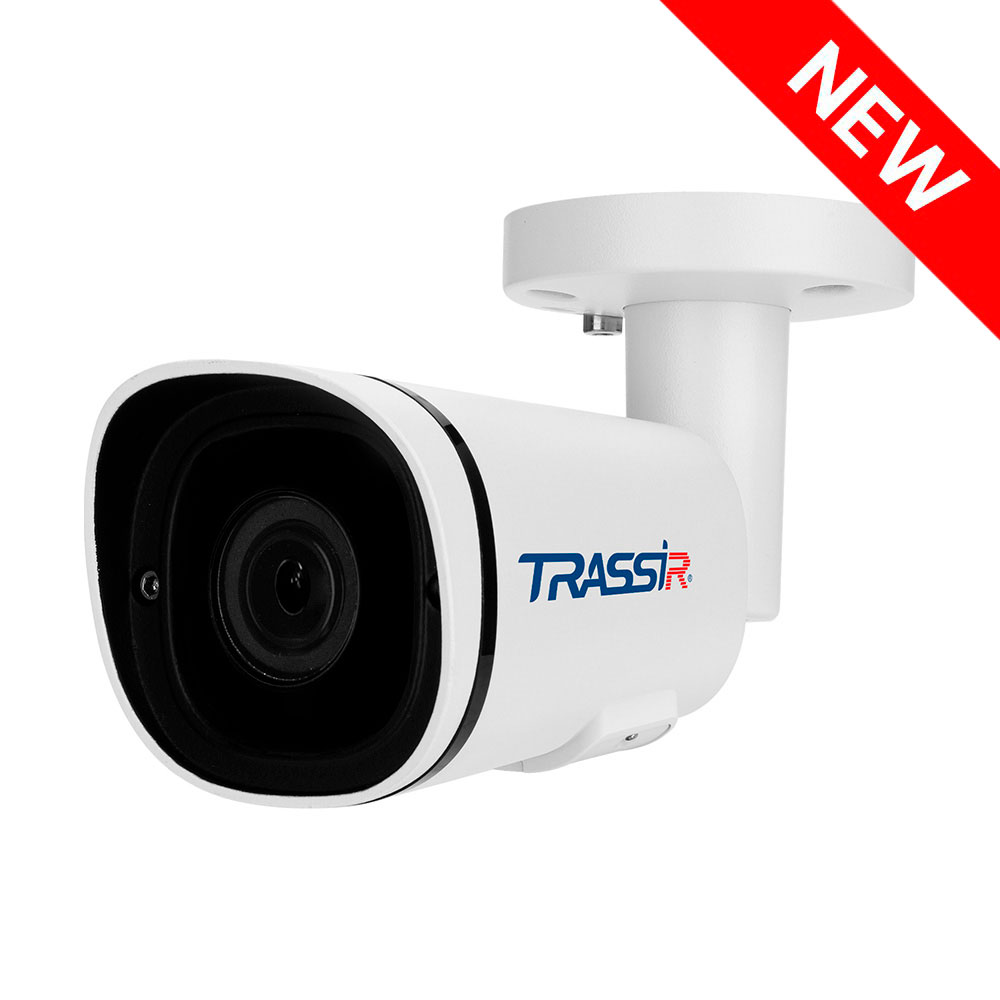

TRASSIR TR-D2222WDZIR4 v3 (2.8-8 mm)

TRASSIR TR-D2222WDZIR4 v3 2.8–8 is a bullet-style IP camera designed for outdoor video surveillance. It is built for 24/7 operation in harsh weather conditions and features a 1/2.8" 2 MP CMOS sensor, delivering video at a resolution of 1920 × 1080.

The camera supports H.265+ / H.265 / H.264 video compression with bitrates up to 8 Mbps. It is equipped with a built-in microphone, 1/1 alarm inputs/outputs, and supports local storage via a microSD card of up to 512 GB. Power is supplied via PoE (802.3af) or 12 V DC.

The metal enclosure is rated IP67 for dust and water protection, features built-in 4000 V TVS surge protection, and is designed to operate in temperatures from −40 °C to +60 °C.

Documentation

TR-D2222WDZIR4 v3 2.8-8.pdf
