TR-D8121CL2 2.8

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/2 ~ 1/1 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Resolution:

2MP

Form factor:

Sphere

Wi-Fi:

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS

Bitrate (Mb/sec):

Power supply:

12V DC

Lens (mm):

2.8

Net Weight (kg):

0.400

Sensitivity(Lux):

0,0015

Local storage:

microSD up to 128 GB

Ingress protection:

IP66

IR:

Yes

Case material:

Metal

Lightning protection:

TVS 4000V

Dimensions (mm):

Ø93 x 92.2

Power consumption, Watt:

3.5

Working temperature, C°:

-40°C ... +60°C

Day/Night Mode:

FTC

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

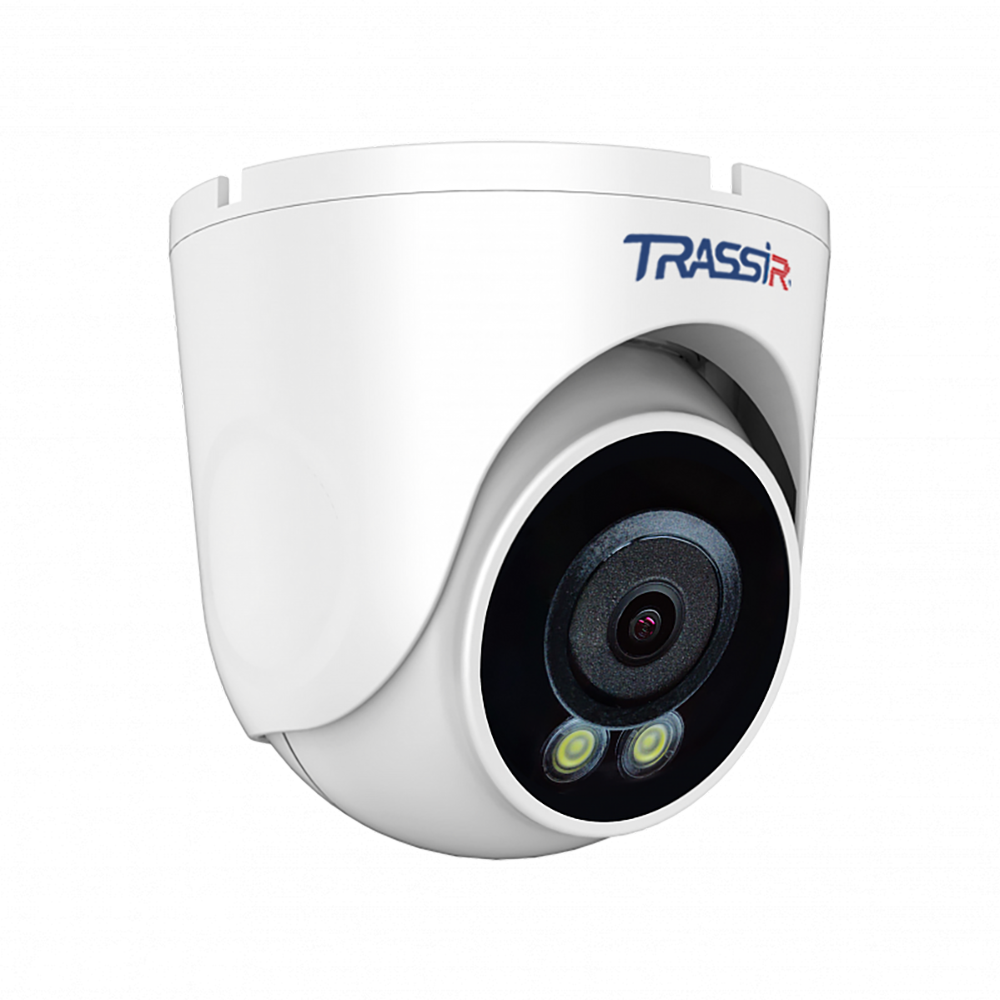

2 MP (1920×1080) IP camera TRASSIR TR-D8121CL2 (2.8 mm) is based on a highly sensitive (0.0015 lx) 1/2.8" matrix, equipped with a fast (F/1.0) lens and LED-backlight with a range of 25 m, due to which broadcasts color video around the clock.Designed taking into account the conditions of outdoor operation, regardless of the season: protection of the case against dust and moisture complies with the IP66 standard, operating temperatures from -40 °C ... +60 °C, lightning protection - TVS 4000 V.

Functionality

Built-in microphone.
Detection of people, movement, virtual line crossing, area entry, area exit, area crossing.
WDR 120 dB - minimizes the effect of changes in illumination levels on picture quality: 2-fold scanning with different exposures and further formation of the final balanced frame.
3D DNR - spatial noise reduction.
BLC - backlight correction.
Defog - Eliminates blur caused by fog or smoke in the scene.
Broadcast speed - 25 fps. Bitrate - 8 Mbps.

Basics

H.264, H.264+, H.265 and H.265+ codecs are provided for compression, RJ-45 connector for network connection. The focal length of the lens is 2.8 mm, the horizontal viewing angle is 105°, and the vertical is 54°. Power supply - DC 12 V, PoE. Power: DC - 3.50 W, PoE - 3.36 W max. Size - Ø93.0×92.2 mm, weight - 400 g.

Documentation

TR-D8121CL2_passport_en.pdf
