TR-D2223WDZDL6 v3 2.8-12

Book A Demo How To Buy

Technical Specifications

Audio:

Array

WDR:

real WDR (120 dB)

Frame rate:

Electronic shutter speed:

1/3 ~ 1/100,000 s

IR range:

up to 60 m

Digital noise Reduction:

3D DNR

Corridor mode:

Resolution:

2MP

Form factor:

Bullet

Maximum video output resolution:

1920x1080

Image sensor:

1/2.8" CMOS 2MP

Bitrate (Mb/sec):

up to 8Mbps

Power supply:

PoE (802.3af) / 12V DC

Lens (mm):

2.8 - 12

Net Weight (kg):

0.80 / 0.98

Sensitivity(Lux):

0.005Lux (F1.8)

Local storage:

MicroSD up to 512GB

Ingress protection:

IP67

IR:

Yes

Case material:

Metal

Video input:

Lightning protection:

TVS 4000V

Power PoE:

6.58W

Dimensions (mm):

215.8 x 76 x 76

Power consumption, Watt:

DC: 5.6W PoE: 6.58W

Working temperature, C°:

-40°C … +60°C

Day/Night Mode:

Mechanical ICR / FTC

Field of view:

H92.2˚ - 33.1˚, V43.5˚ - 16.5˚

Class PoE :

802.3af/at

Video compression:

Н.265+ / Н.265 / H.264+ / H.264

Overview

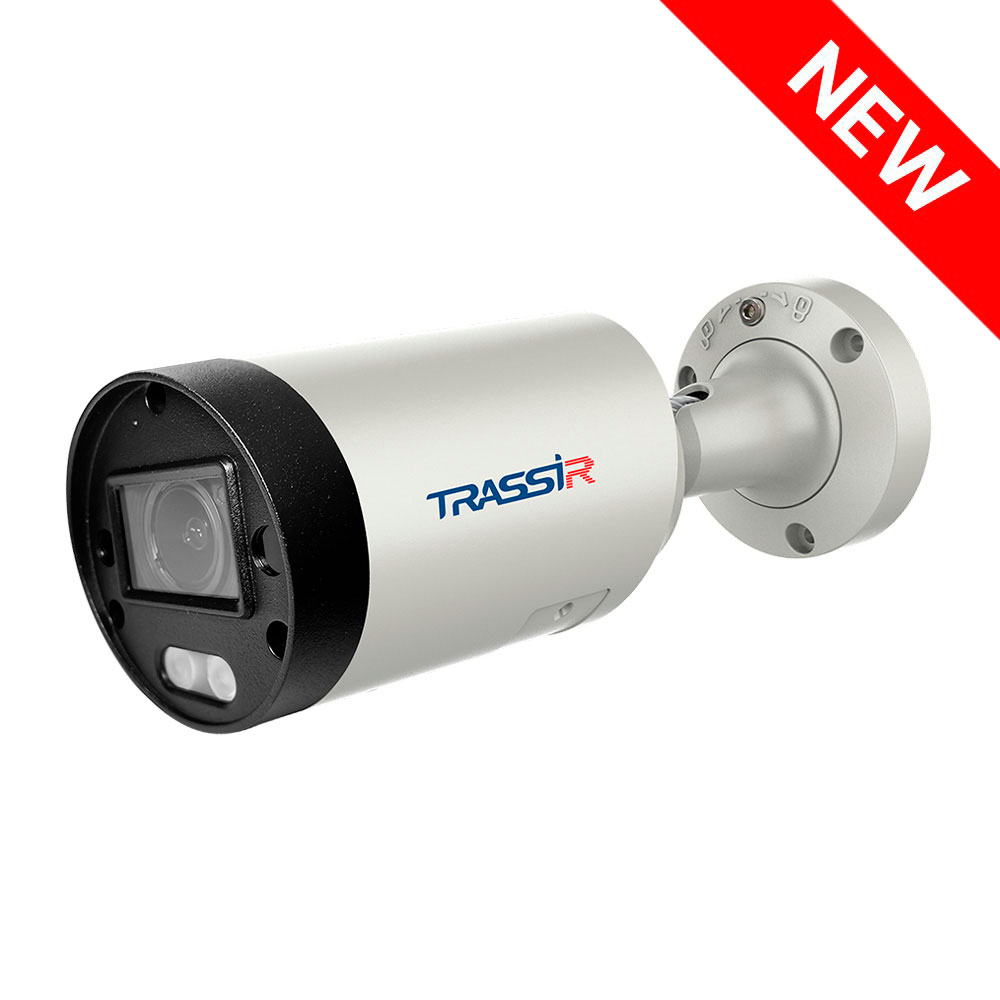

TRASSIR TR-D2223WDZDL6 v3 (2.8-12 mm)

TRASSIR TR-D2223WDZDL6 v3 2.8–12 is an outdoor bullet camera featuring dual intelligent illumination for 24/7 video monitoring. With a 1/2.8" CMOS sensor, it captures images at a maximum resolution of 2 MP (1920×1080). A motorized 2.8–12 mm varifocal lens allows precise scene adjustment. Real WDR (120 dB) and 3D DNR noise reduction ensure clear video even in challenging lighting conditions. The camera offers IR and warm white LED illumination, each with a range of up to 60 meters, providing detailed video capture in the dark.

It supports H.265+, H.265, H.264+, and H.264 compression with a maximum bitrate of 8 Mbps for efficient storage and transmission of video streams. Local recording is supported via built-in Edge Storage, with MicroSD cards up to 512 GB and hot-swappable (HotSwap) capability.

Advanced hardware analytics include people and face detection, line crossing detection, loitering detection, area monitoring, people counting, and vehicle detection. Two-way audio is also supported.

Designed for outdoor installation, the camera features an IP67-rated enclosure, 6000V TVS surge protection, and operates in temperatures from -40°C to +60°C. Power can be supplied via PoE (802.3af, Class 0) or 12V DC.

Documentation

TR-D2223WDZDL6 v3 2.8-12.pdf
